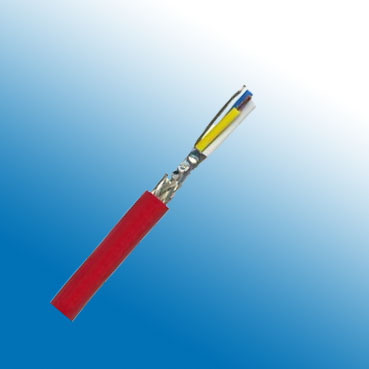

CC-Link 1.10 Cable

Bus Cables

Application:

CC-Link® (Control & Communication Link) is a field network system that processes both control and information data at high speed, to provide efficient, integrated factory and process automation.
CC-Link is particularly popular in Asia and is used worldwide for time critical applications .
CC-Link is certified by CLPA and ensures product compatibility.

Construction:

Type 3 x 20AWG Cable
Inner Conductor Plain copper conductors 20(7)AWG
Conductor Insulation Foamed PE with a hard skin
Stranding Element -
Core Wrapping Polyester taped
Shielding Aluminium foil
Total Shielding Tinned copper wire braid – 78% optical coverage
Drain Wire 22(19)AWG tinned copper
Outer Jacket Material PVC / PE
Core Identification Yellow, White, Blue
Sheath colour

Red

Electrical Data:

CharacteristicImpedance@1MHz 110 Ω ± 10Ω
Conductor Resistance 36.0 Ohm/km max.
Insulation Resistance 10.0GOhm x km min.
Mutual Capacitance@1 KHz 60.0 nF/km nom.
Working Voltage Max:300v
Test Voltage 2 KV

Data Rate

156 Kbit/s 1200m
625 Kbit/s 600m
2.5 Mbit/s 200m
5.0 Mbit/s 110-150m
10.0 Mbit/s 50-100m

Attenuation

1MHz 1.6dB/100m
5MHz 3.5dB/100m

Technical Data:

Weight: approximately 76.0 kg/km
Min. Bending Radius (Laying): 15 x OD mm
Operating Temp.Range, min.: - 40 °C
Operating Temp.Range, max.: +70 °C
