Bus Cables
Application:

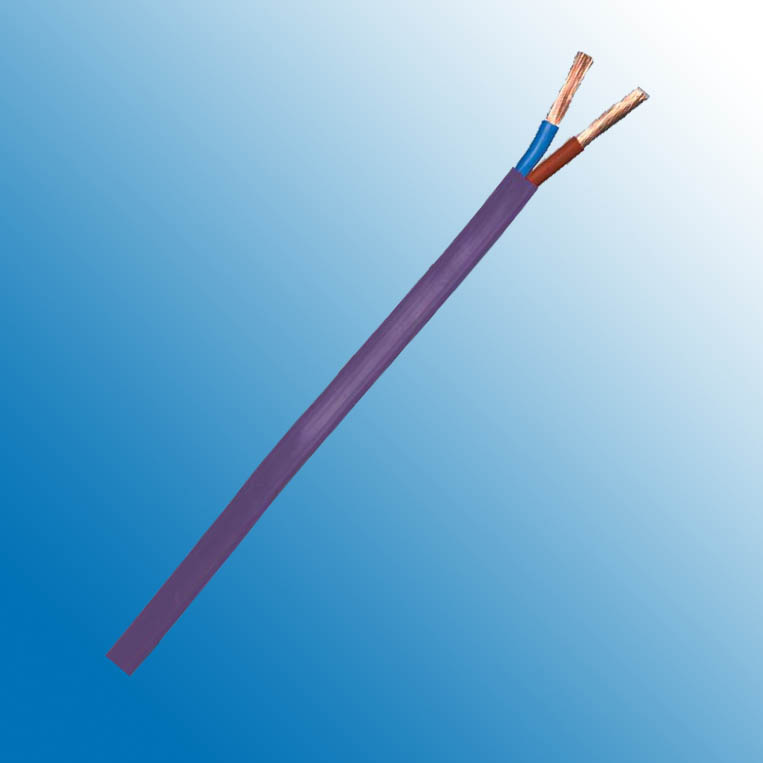

The two-conductor Interbus-Loop cable is to be applied as a data transmission cable as well as for the supply of sensors. The three-conductor Interbus-Loop cables is applied for supply of actuators. These cables are also suitable for Interbus-Loop 2.
Construction:
Type |
2 pairs/ 3 pairs interbus Loop cable |
Inner Conductor: |
Bare copper conductors 1.5mm² |
Conductor Insulation |
PE |
Stranding Element |
Specially adjusted layering with netting tape and one additional non-woven tape over the outer layer |
Core Wrapping |
- |
Shielding |
- |
Drain Wire: |
- |
Outer Jacket Material |
PVC/ PUR/ FRNC |
Conductor identification |
Blue, red |
Sheath colour |
Purple |
Electrical Data:
Characteristic Impedance@250MHz - 10MHz |
75 Ω ± 15 Ω |
Radiation Resistance |
5 x 107 cJ/kg |
Weather Resistance |
Very good |
Working Voltage |
Max: 350V |
Test Voltage |
1KV |
Technical Data：
| Weight: | approximately 78.0 kg/km | approximately 94.0 kg/km |
| Min. Bending Radius | 15 x OD mm | |
| Operating Temp.Range, min. | - 40 °C(flexing)/ - 50 °C(static) | |
| Operating Temp.Range, max. | +90 °C | |
