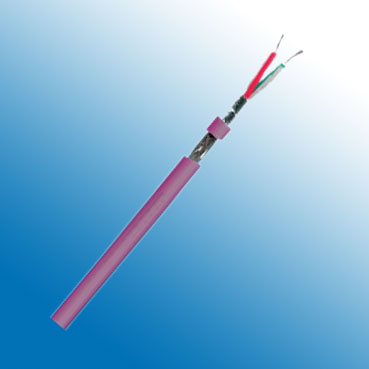

Profibus L2-Drag Chain(Track)

Bus Cables

Application:

This system cable is used to interconnect L2-BUS components. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The above mentioned types are suitable for drag chains (stranded).

Construction:

Type/Area of Application Drag Chain Applications
Cable Construction 1x2x0.64 mm (stranded)
Inner Conductor Diameter Copper, bare (AWG 24/19)
Conductor Insulation Foam-skin-PE
Conductor Colors Red, green
Stranding Element 2 conductors + 2 fillers stranded together
Shielding 1 Polyester foil over stranded bundle
Shielding 2 Polyester foil, aluminum-lined
Total Shielding Cu braid, tinned
Outer Jacket Material PUR
Outer Diameter 8.0 mm ± 0.4 mm
Outer Jacket Color Violet

Electrical Data:

Characteristic Impedance@3-20MHz 150 Ω ± 10 Ω
Conductor Resistance 82.0 Ohm/km max.
Insulation Resistance 1.00 GOhm x km min.
Mutual Capacitance@1KHz 30.0 nF/km nom.
Working Voltage  Max: 250 V
Test Voltage 1.5 kV
Attenuation 9.6 kHz 3.0 dB/km
38.4 kHz 5.0 dB/km
4.0 MHz 25.0 dB/km
16.0 MHz 52.0 dB/km

Technical Data:

Weight approximately 65.0 kg/km
Min. Bending Radius (Laying) 7.5 x OD mm
Operating Temp.Range, min. -40 °C
Operating Temp.Range, max. +70 °C
