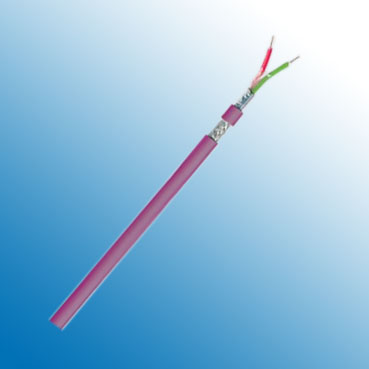

Profibus L2 Indoor

Bus Cables

Application:

This system cable is used to interconnect L2-BUS components. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial fieldbus systems are used. The types mentioned here are suitable for indoor laying and are equipped with a special PVC jacket.

Construction:

Type/Area of Application

Fixed Installation, Indoor

Cable Construction

1x2x0.64 mm

Inner Conductor Diameter

Copper, bare (AWG 22/1)

Conductor Insulation

Foam-skin-PE

Conductor Colors

Red, green

Stranding Element

2 conductors + 2 fillers stranded together

Shielding 1

Polyester foil over stranded bundle

Shielding 2

Polyester foil, aluminum-lined

Total Shielding

Cu braid, tinned

Outer Jacket Material

PVC

Outer Diameter

7.8 mm ± 0.4 mm

Outer Jacket Color

Grey/Violet

Electrical Data:

CharacteristicImpedance@3-20MHz

150 Ω ± 10 Ω

Conductor Resistance

55.0 Ohm/km max.

Insulation Resistance

1.00 GOhm x km min.

Mutual Capacitance@1 KHz

30.0 nF/km nom.

Working Voltage

 Max: 250 V

Test Voltage

1.5 KV

Attenuation

9.6

kHz

2.5

dB/km

38.4

kHz

4

dB/km

4

MHz

22

dB/km

16

MHz

42

dB/km

Technical Data:

Weight

approximately 69.0 kg/km

Min. Bending Radius (Laying)

15 x OD mm

Operating Temp.Range, min.

-40 °C

Operating Temp.Range, max.

+70 °C
