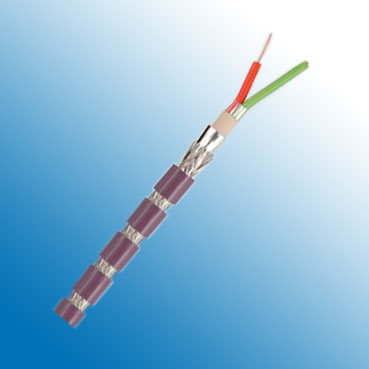

Profibus SK Drag Chain(Track)

Bus Cables

Application:

The application of these Profibus SK cables are in the cell and field area, just as for conventional types. The great advantage of this new system is the quick connection of the cable to the respective plugs. This type of processing also avoids errors. The above mentioned types are suitable for drag chains (stranded).

Construction:

Type/Area of Application Drag Chain Applications
Cable Construction 1x2x0.64 mm (stranded)
Inner Conductor Diameter 1 Copper, bare (AWG 24/19)
Conductor Insulation Foam-skin-PE
Conductor Colors red, green
Stranding Element 2 conductors + filler
Shielding 1 Polyester foil over stranded bundle
Shielding 2 Polyester foil, aluminum-lined
Total Shielding Copper braid, tinned
Outer Jacket Material PUR
Outer Diameter 8.0 mm ± 0.4 mm
Outer Jacket Color Violet

Electrical Data:

Characteristic Impedance@3-20MHz 150 Ω ± 10 Ω
Conductor Resistance 84.0 Ohm/km max.
Insulation Resistance 1.00 GOhm x km min.
Mutual Capacitance@1KHz 35.0 nF/km nom.
Working Voltage 300V
Test Voltage 1.5 KV
Attenuation

9.6

kHz

3

dB/km

38.4

kHz

5

dB/km

4

MHz

25

dB/km

16

MHz

52

dB/km

Technical Data:

Weight:

approximately 70.0 kg/km

Min. Bending Radius (Laying)

7.5 x OD mm

Operating Temp.Range, min.

- 40 °C

Operating Temp.Range, max.

+70 °C
