Composite Cables |
 |
|
|
|||
 |
|
 |
|
|
| Conductor | 0.58mm Solidcopperconductor |
| Insulation | Polyethylene.Thickness1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 95% |
| Sheath | LSZH sheath. Nominalouterdiameter6.15mm |
| Sheath Color | Black |
2x1x2x24AWG Shielded Twisted Pair (around coaxial cable)
| Conductor | 7/0.2mm Strandedtinnedcopper |
| Insulation | PVCmaterial.Thickness0.4mm |
| Insulation Color | Black andwhite |
| Shield | Aluminium polyester tape |
| Drain Wire | 24AWGstrandedtinnedcopperdrain wire |
| Sheath | LSZHsheath.Nominal outer diameter 4.8mm.Thickness0.76mm |
| Sheath Color | Black and Grey |
3x1.5mm² Power Cable ( around coaxial cable)
| Conductor | 1.5mm² Stranded tinned copper wire |
| Insulation | XLPE. Nominal outer diameter 3.0mm |
| Insultion Color | Blue, Brown and Green/Yellow |

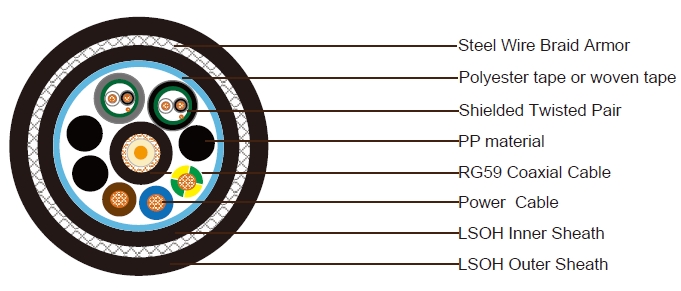

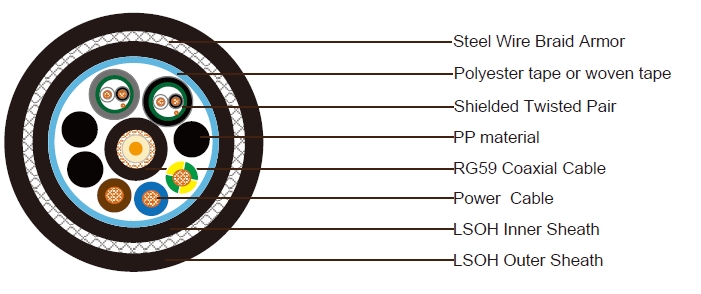

Element Assembly
| Filler | PE or PP material |
| Wrapping Tape | Polyester tape or woven tape |
| Inner Sheath | Black LSZH, thickness 0.8mm |
| Armor | Steel wire braid, coverage 85% |
| Outer Sheath | LSZH, thickness 1.5mm, nominal outer diameter 21.5±2.0mm |
| Sheath Color | Black |
Electrical and Physical Properties @20°C:
Coaxial Cable
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz
Power Cable
Electrical Resistance: 12.1Ohm/km Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
Element Assembly:
Min Bending Radius: 420mm
Operating Temperature: -35°C/+80°C
Fire Performance:
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
Flame Propagation: IEC60332
