FIREGUARD Flame Retardant Cables

Flame Retardant Power & Control Cables

300/500V XLPE Insulated, PVC Sheathed Power Cables (2-4 Cores)

FGD200 05RV-R (CU/XLPE/PVC 300/500V Class 2)
FGD200 05RVMV-R (CU/XLPE/PVC/SWA/PVC 300/500V Class 2)

Flame Retardant Power & Control Cables

APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS
Basic design adapted to IEC 60502-1; BS 5467

FIRE PERFORMANCE

Flame Retardance (Single Vertical
Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.

VOLTAGE RATING
300/500V

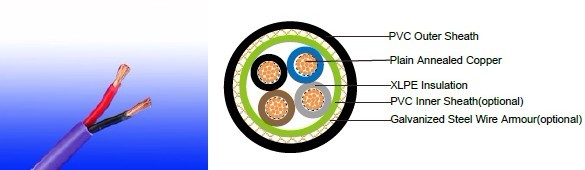

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Inner Sheath (optional): PVC Compound
Armouring (optional): Galvanized Steel Wire
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE
Insulation Colour as per BS7671



With Earth Conductor

Without Earth Conductor

2Cores

-

Brown, Blue

3Cores

Yellow/Green, Brown, Blue

Brown, Gray, Black

4Cores

Yellow/Green, Brown, Gray, Black

Brown, Gray, Black, Blue

5Cores

Yellow/Green, Brown, Gray, Black, Blue

Brown, Gray, Black, Blue, Black

Above 5 Cores

Yellow/Green, Black Numbered

Black Numbered


Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 6 x Overall Diameter (unarmoured cable)
10 x Overall Diameter (armoured cable)

CONSTRUCTION PARAMETERS

Conductor FGD200 05RV-R FGD200 05RVMV-R
No. of Core
X
Cross
Section
No./Nominal
Diameter of
Strands
Nominal
Insulation
Thickness
Unarmoured Armoured
Nominal
Overall
Diameter
Approx.
Weight
Diameter
Under
Armour
Armour
Wire
Diameter
Nominal
Overall
Diameter
Approx.
Weight

Noxmm2

No./mm

mm

mm

kg/km

mm

mm

mm

kg/km

2x1.5

7/0.53

0.50

6.5

65

6.5

0.9

11.2

246

2x2.5

7/0.67

0.50

7.3

91

7.3

0.9

12.0

292

2x4

7/0.85

0.50

8.4

131

8.4

0.9

13.1

360

3x1.5

7/0.53

0.50

6.9

81

6.9

0.9

11.6

275

3x2.5

7/0.67

0.50

7.8

116

7.8

0.9

12.5

331

3x4

7/0.85

0.50

9.0

169

9.0

0.9

13.7

413

4x1.5

7/0.53

0.50

7.6

101

7.6

0.9

12.3

309

4x2.5

7/0.67

0.50

8.6

144

8.6

0.9

13.3

380

4x4

7/0.85

0.50

9.9

213

9.9

0.9

14.6

479

Electrical Properties
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

FGD200 05RV-R
Current-Carrying Capacities (Amp)

Conductor cross- sectional area

Reference Method
4 (enclosed in conduit
in thermally insulating wall etc)

Reference Method 3 (enclosed in conduit on
a wall or in trunking etc)

Reference Method
1 (clipped direct)

Reference Method 11 (on a perforated cable tray, horizontal or vertical)

Reference Method 12 (free air)

Horizontal flat spaced

Vertical flat spaced

Trefoil



2 cables, single- phase a.c. or d.c.

3 or 4 cables,
3-phase a.c.

2 cables, single- phase a.c. or d.c

3 or 4 cables,
3-phase a.c.

2 cables, single- phase a.c. or d.c. flat and touching

3 or 4 cables,
3-phase a.c. flat and touching or trefoil

2 cables, single- phase a.c. or d.c. or flat and touching

3 or 4 cables,
3-phase a.c. flat and touching or trefoil

2 cables, single- phase a.c. or d.c.
or 3 c ables three phase

2
cables, single- phase a.c. or d.c.
or 3 cables three
phase

3 cables, trefoil
3-phase a.c.

1

2

3

4

5

6

7

8

9

10

11

12

mm2

A

A

A

A

A

A

A

A

A

A

A

1.5

18

17

22

19

25

23

-

-

-

-

-

2.5

24

23

30

26

34

31

-

-

-

-

-

4

33

30

40

35

46

41

-

-

-

-

-

Voltage Drop (Per Amp Per Meter)

Nominal
Cross
Section
Area
2 cables
d.c.
2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c.
Ref. Methods 3
and 4 (enclosed
in conduit etc,
in or on a wall)
Ref. Methods 1
and 11 (clipped
direct or on trays
touching)
Ref. Methods 3
and 4 (enclosed
in conduit etc,
in or on a wall)
Ref. Methods 1,
11 and 12 (in
trefoil)
Ref. Methods 1 and
11(Flat and touching)

1

2

3

4

5

6

7

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.5

31

31

27

27

27

27

2.5

19

19

16

16

16

16

4

33

12

10

10

10

10

FGD200 05RVMV-R
Current-Carrying Capacities (Amp)

Conductor
crosssectional
area
Reference Method 1
(clipped
direct)
Reference Method 11 (on
a perforated horizontal
cable tray or Reference
Method 13 [free air] )
In single-way ducts Laid direct in ground
one 2-core
cable single
phase a.c.
or d.c.
one 3-core or
4-core cable
3-phase a.c.
one 2-core
cable single
phase a.c.
or d.c.
one 3-core or
4-core cable
3-phase a.c.
one 2-core
cable single
phase a.c.
or d.c.
one 3-core or
4-core cable
3-phase a.c.
one 2-core
cable single
phase a.c.
or d.c.
one 3-core or
4-core cable
3-phase a.c.

1

2

3

4

5

6

7

8

9

mm2

A

A

A

A

A

A

A

A

1.5

27

23

29

25

-

23

-

28

2.5

36

31

39

33

-

30

-

36

4

49

42

52

44

-

40

-

48

Voltage Drop (Per Amp Per Meter)

Nominal
Cross
Section Area

2 cables d.c.

2 cables, single- phase a.c.

3 or 4 cables, 3-phase a.c.

2 cables, single-phase a.c.

3 or 4 cables,
3-phase a.c.

In ducts or in ground

In ducts or in ground

1

2

3

4

5

6

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.5

31

31

27

31

25

2.5

19

19

16

19

15

4

12

12

10

12

9.7
