600/1000V XLPE Insulated, LSZH Sheathed, Double steel tape Armoured Power Cables (3cores)

FTX400 1RZ1MZ1-R (CU/XLPE/LSZH/DSTA/LSZH 600/1000V Class 2)

Firetox Flame Retardant Cables

APPLICATION
The cables is mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS
Basic design to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING
600/1000V

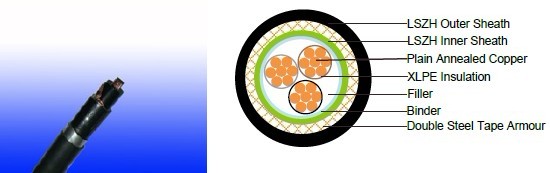

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, normal stranded or compact stranded according to IEC(EN)
60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Filler, binder and inner covering: PP, PET, LSZH
Armouring: Double steel tape
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE
Insulation Colour as per BS7671



with earth conductor

without earth conductor

2Cores

-

Brown,Blue

3Cores

Yellow/Green,Brown,Blue

Brown,Gray,Black

4Cores

Yellow/Green,Brown,Gray,Black

Brown,Gray,Black,Blue

5Cores

Yellow/Green,Brown,Gray,Black,Blue

Brown,Gray,Black,Blue,Black

above 5 Cores

Yellow/Green,Black Numbered

Black Numbered

Sheath Colour: Black

Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5s max.
Minimum bending radius: 10x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor FTX400 1RZ1MZ1-R
No. of Core X
Cross Section
Phases Neutral Nominal
Diameter
Overall
Conducrtor
Nominal
Insulation
Thickness
Nominal
Steel
Tape
Thickness



Nominal
Sheath
Thickness



Nominal
Overall
Diatemer

Approx.
Weight



No./
Nominal
Diameter
of
Strands

No./
Nominal
Diameter
of
Strands

Pha.

Neu.

Pha.

Neu.

mm2

No/mm

No/mm

mm

mm

mm

mm

mm

mm

mm

Kg/km

3xl0+lx6

7/Com

7/Com

3.75

2.90

0.7

0.7

0.2

1.8

20.1

740

3x16+1xl0

7/Com

7/Com

4.75

3.75

0.7

0.7

0.2

1.8

22.5

1,004

3x25+2x16

7/Com

7/Com

5.85

4.75

0.9

0.7

0.2

1.8

25.8

1,421

3x35+1x16

7/Com

7/Com

6.90

4.75

0.9

0.7

0.2

1.8

27.7

1,745

3x35+1x25

7/Com

7/Com

6.90

5.85

0.9

0.9

0.2

1.8

28.6

1,864

3x50+lx25

7/Com

7/Com

8.15

5.85

1.0

0.9

0.2

1.8

31.3

2,358

3x50+1x35

7/Com

7/Com

8.15

6.90

1.0

0.9

0.2

1.9

32.0

2.72

3x70+1x35

19/Com

7/Com

9.75

6.90

I.1

0.9

0.2

2.0

35.9

3166

3x70+1x50

19/Com

7/Com

9.75

8.15

I.1

1.0

0.2

2.0

36.8

3.341

3x95+lx50

19/Com

7/Com

11.4

8.15

I.1

1.0

0.5

2.1

41.4

4,611

3x120+1x70

19/Com

19/Com

12.8

9.75

1.2

I.1

0.5

2.3

45.6

5682

3x150+1x95

19/Com

19/Com

14.3

11.4

1.4

I.1

0.5

2.4

50.8

7,072

3x150+1x120

19/Com

19/Com

14.3

12.8

1.4

1.2

0.5

2.5

51.8

7,357

3xI85+1x95

37/Com

19/Com

15.9

11.4

1.6

I.1

0.5

2.6

54.7

8,348

3x185+1x120

37/Com

19/Com

15.9

12.8

1.6

1.2

0.5

2.6

55.8

8638

3x240+1x120

37/Com

19/Com

18.2

12.8

1.7

1.2

0.5

2.7

61.0

10,660

3x240+1x150

37/Com

19/Com

18.2

14.3

1.7

1.4

0.5

2.8

62.2

11024

3x300+1x150

37/Com

19/Com

20.4

14.3

1.8

1.4

0.5

2.9

66.8

12,809

3x300+1xI85

37/Com

37/Com

20.4

15.9

1.8

1.6

0.5

3.0

68.1

13,256

Notes:
1) *All conductors in accordance with lEC 60228. Compact shape (Com.) or non-compact depending on order.
2) Beside above list we can also provide others size depend on customer's requirement.
