Firetox Flame Retardant Cables

Flame Retardant Coaxial Cables

Flame Retardant RG11 Coaxial Cables

Flame Retardant Coaxial Cables

APPLICATION
These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

STANDARDS
Basic design to MIL-C-17

FIRE PERFORMANCE

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

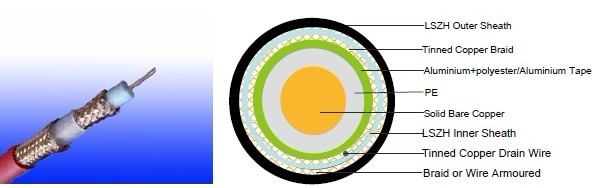

CABLE CONSTRUCTION
Conductors: 14AWG solid bare copper.
Insulation: Low density PE compound.
Screen1: Aluminium/polyester or aluminium tape.
Screen2: Tinned copper braid.
Inner Sheath: Low smoke and halogen-free polyolefin, coloured black.
Armour:
cwb: copper Wire Braidswb: Steel Wire Braid
swa: Steel Wire Armour
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655:section 2.6 can be offered.)

Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C - +75°C
Minimum bending radius: 15 x Overall Diameter

Electrical Properties

AWG



14

Nominal Conductor Diameter

mm

1.6

Impedance

Ω

75+/-5

Nominal Attenuation@100mHz

dB/100m

4.5

Nominal Attenuation@270mHz

dB/100m

7.6

Nominal Attenuation@540mHz

dB/100m

10.8

Nominal Attenuation@750mHz

dB/100m

12.8

Nominal Attenuation@1000mHz

dB/100m

14.8

Capacitance

pF/m

53.5

Velocity of Propagation

%

83

Conductor DCR

Ω/km

8.5

Shield DCR

Ω/km

12.1

Inductance

μH/m

0.32

Time Delay

ns/m

4

CONSTRUCTION PARAMETERS

Cable Code

Nominal Inner Conductor Diameter

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Nominal
Weight



mm

mm

mm

mm

kg/km

RG11 CWB

1.6

2.7

1.7

15.2

349

RG11 SWB

1.6

2.7

1.7

15.2

344

RG11 SWA

1.6

2.7

1.7

16.2

468
