Cat 5e SF/UTP 24AWG 4P/8P

Cat 5e SF/UTP 24AWG 4P/8P

Application
These Cat5e SF/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz.

Standards
 EN 50173-1
 EN 50288-2-1
 ISO/IEC 11801
 IEC 61156-5
 TIA/EIA-568-B.2
 IEC 60332-1 (for PVC & LSOH & FRLSOH Sheath)
 IEC 60754-2 (for LSOH & FRLSOH Sheath)
 IEC 61034 (for LSOH & FRLSOH Sheath)
 IEC 60332-3-24 (for FRLSOH Sheath)

Cat 5e SF/UTP 24AWG 4P/8P

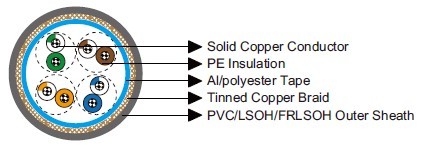

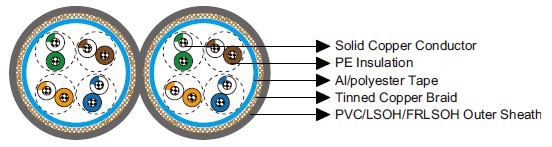

Construction
 Conductors: Bare copper conductor.
 Insulation: PE.
 Twinning: Two coloured insulated conductors twisted together to form a pair.
 Overall Screen1: Al/polyester tape.
 Overall Screen2: Tinned copper wire braid.
 Outer Sheath: PVC/LSOH/FRLSOH.

Core Identification
Pair 1: White/Blue, Blue
Pair 2: White/Orange, Orange
Pair 3: White/Green, Green
Pair 4: White/Brown, Brown

Electrical Properties

Maximum Loop Resistance

Ω/km

190

Maximum Resistance Unbalance



2%

Minimum Insulation Resistance

MΩ.km

1000

Nominal Capacitance @800Hz

nF/km

48

Maximum Capacitance Unbalance (pair to ground)

pF/km

1500

Characteristic Impedance @1-100MHz

Ω

100 ± 15

Nominal Velocity of Propagation



ca. 67%

Maximum Propagation Delay

ns/100 m

535

Maximum Delay Skew

ns/100 m

20

Maximum Transfer Impedance @1MHz

mΩ /m

20

Maximum Transfer Impedance @10MHz

mΩ /m

20

Maximum Transfer Impedance @30MHz

mΩ /m

30

Maximum Transfer Impedance @100MHz

mΩ /m

60

Minimum Coupling Attenuation

dB

75

Nominal Transmission Characteristics @20℃

F

Attenuation

NEXT

PS-NEXT

ACR

PS-ACR

ELFEXT

PS-ELFEXT

Return Loss

MHz

dB/100m

dB

dB

dB/100m

dB/100m

dB/100m

dB/100m

dB

1

1.9

71

68

69.1

66.1

68

65

20

4

3.7

62

59

58.3

55.3

56

53

23

10

6.0

56

53

50

47.0

48

45

25

16

7.6

53

50

45.4

42.4

44

41

25

20

8.5

51

48

42.5

39.5

42

39

25

31.2

10.7

49

46

38.3

35.3

38

35

24

62.5

15.7

44

41

28.2

25.3

32

29

22

100

19.8

41

38

21.2

18.2

28

25

20

125.0

22.3

40

37

17.7

14.7

26

23

19

155.5

24.2

38

35

13.8

10.8

24

21



175.0

25.7

37

34

11.3

8.3

23

20



200.0

27.5

36

33

8.5

5.5

22

19



250.0

29.2

35

32

5.8

2.8

20

17



300.0

32.0

34

31

2.0

-1.0

16

13



Mechanical and Thermal Properties
Bending Radius: 8×OD (during installation); 4×OD (fixed installed)
Temperature Range: -20℃ ~ +60℃

Dimensions and Weight

Part No.

Construction
No. of elements×No. of cores in element×Cross
section(mm²)

Nominal
Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MLN-SF/UTPCAT5E4P24

4×2×24AWG

0.29

0.6

6.4

47

MLN-SF/UTPCAT5E8P24

2×(4×2×24AWG)

0.29

0.6

13.0×6.4

94
