Cat 5e S/FTP 0.22mm²

Cat 5e S/FTP 0.22mm²

Application
These Cat5e S/FTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz.

Standards
 EN 50173-1
 EN 50288-2-1
 ISO/IEC 11801
 IEC 61156-5
 IEC 60332-3-24
 IEC 60754-1/2
 IEC 61034-1/2

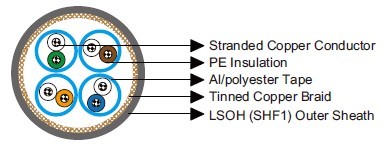

Construction
 Conductors: Stranded copper conductor.
 Insulation: PE.
 Twinning: Two coloured insulated conductors twisted together to form a pair.
 Individual Screen: Al/polyester tape.
 Overall Screen: Tinned copper wire braid.
 Outer Sheath: Oil resistant, flame retardant and halogen free LSOH (SHF1).

Core Identification
Pair 1: White, Blue
Pair 2: White, Orange
Pair 3: White, Green
Pair 4: White, Brown

Electrical Properties

Maximum DC Loop Resistance

Ω/km

158

Maximum Resistance Unbalance



2%

Minimum Insulation Resistance (500V)

MΩ.km

5000

Nominal Capacitance @800Hz

nF/km

43

Maximum Capacitance Unbalance (pair to ground)

pF/km

1500

Mean Characteristic Impedance @100MHz

Ω

100 ± 5

Nominal Velocity of Propagation



0.75c

Maximum Propagation Delay

ns/100 m

450

Maximum Delay Skew

ns/100 m

15

Maximum Transfer Impedance @1MHz

mΩ /m

10

Maximum Transfer Impedance @10MHz

mΩ /m

8

Maximum Transfer Impedance @30MHz

mΩ /m

10

Minimum Coupling Attenuation

dB

85

Nominal Transmission Characteristics @20℃

F

Attenuation

NEXT

ACR

Return Loss

PS-NEXT

PS-ACR

ELFEXT

PS-ELFEXT

MHz

dB/100m

dB

dB/100m

dB

dB

dB/100m

dB/100m

dB/100m

1

2.1

90

88



87

85

85

82

4

4.0

90

86

27

87

83

85

82

10

6.3

90

84

30

87

81

79

76

16

8.0

90

82

30

87

79

75

72

20

9.0

90

81

30

87

78

73

70

31.25

11.4

90

79

30

87

76

69

66

62.5

16.5

86

70

30

83

67

63

60

100

21.3

83

62

30

80

59

59

56

155.0

24.2

81

57

26

78

54

57

54

200.0

31.5

78

47

25

75

44

53

50

250

35.8

77

41

25

74

38

51

48

300.0

47.1

73

26

23

70

23

47

44

600.0

60.1

71

11

20

68

8

44

41

Mechanical and Thermal Properties
Bending Radius: 8×OD (during installation); 4×OD (fixed installed)
Temperature Range: -40℃ ~ +85℃

Dimensions and Weight

Part No.

Construction
No. of elements×No. of cores in element×Cross
section(mm²)

Nominal Insulation Thickness
mm

Nominal Sheath Thickness
mm

Nominal Overall Diameter
mm

Nominal Weight kg/km

MLN-S/FTPCAT5E4P22S

4×2×0.22

0.4

0.75

7.7

68
