Cat 6 U/FTP 23AWG

Application
These Cat6 U/FTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 250MHz.

Standards
 EN 50288
 ISO 11801
 IEC 61156-5
 IEC 60332-1
 IEC 60754-1/2
 IEC 61034

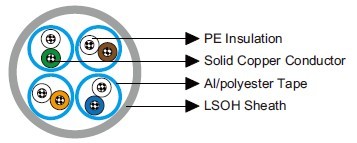

Construction
 Conductors: Solid bare copper conductor.
 Insulation: PE.
 Twinning: Two coloured insulated conductors twisted together to form a pair.
 Individual Screen: Al/polyester tape.
 Outer Sheath: LSOH.

Core Identification
Pair 1: White, Blue
Pair 2: White, Orange
Pair 3: White, Green
Pair 4: White, Brown

Electrical Properties

Maximum Loop Resistance	Ω/km	145
Maximum Resistance Unbalance		2%
Minimum Insulation Resistance	MΩ.km	1000
Nominal Capacitance @800Hz	nF/km	45
Maximum Capacitance Unbalance (pair to ground)	pF/km	800
Characteristic Impedance @1-100MHz	Ω	100 ± 5
Nominal Velocity of Propagation		0.75c
Maximum Propagation Delay	ns/100 m	500
Maximum Delay Skew	ns/100 m	20
Maximum Transfer Impedance @1MHz	mΩ /m	50
Maximum Transfer Impedance @10MHz	mΩ /m	100
Maximum Transfer Impedance @30MHz	mΩ /m	200
Minimum Coupling Attenuation	dB	55

Nominal Transmission Characteristics @20℃

F	Attenuation	NEXT	PS-NEXT	ACR	PS-ACR	ELFEXT	PS-ELFEXT	Return Loss
MHz	dB/100m	dB	dB	dB/100m	dB/100m	dB/100m	dB/100m	dB
1	2.0	90	87	88	85	85	82
4	3.6	90	87	86	83	85	82	27
10	5.7	90	87	84	81	79	76	30
16	7.2	90	87	83	80	75	72	30
20	8.1	90	87	82	79	73	70	30
31.25	10.2	90	87	80	77	69	66	30
62.50	14.7	90	87	75	72	63	60	30
100	18.9	90	87	71	68	59	56	30
155	24.0	88	85	64	61	55	52	26
200	27.0	88	85	61	58	53	50	25
250	31.4	86	83	55	52	51	48	25
300	34.8	86	83	51	48	49	46	23
400	38.1	86	83	48	45	44	41	23

Mechanical and Thermal Properties
Bending Radius: 8×OD (during installation); 4×OD (fixed installed)
Temperature Range: -20℃ ~ +60℃

Dimensions and Weight

Part No.	Construction No. of elements×No. of cores in element×Cross section(mm²)	Nominal Insulation Thickness mm	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
MLN-U/FTPCAT64P23	4×2×23AWG	0.23	0.63	7.5	61
