KX Series Coaxial Cables 50 Ω/75 Ω

Application
These radio frequency cables are suitable for high frequency data transmission (communication equipment, radar, instrumentation equipment) and video signal transmission.

Standards
 In line with MIL C17
 IEC 60092-359
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

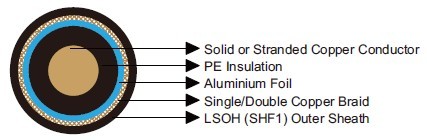

Construction
 Conductors: Solid or stranded CCS (Bare copper plated steel), BC (Bare copper).
 Insulation: PE.
 Fire Barriers: Aluminium foil.
 Screen: Single or double braid. Bare, tinned or silvered copper
 Outer Sheath: LSOH (SHF1).

Electrical Characteristics

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 10×OD
Temperature Range: -30℃ ~ +60℃

Dimensions and Weight

50 Ω

75 Ω
