MRE-2XCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)

MRE-2XCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)

Application
These armoured cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards
 IEC 60092-350/351/376/359
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

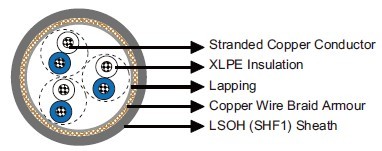

Construction
 Conductors: Class 2 stranded copper conductor.
 Insulation: XLPE.
 Cabling Element: Pair/Triple.
 Inner Covering: Lapped polyester tape.
 Armour: Copper wire braid.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No.

Construction
No. of elements×No. of cores in element×Cross
section(mm²)

Nominal Insulation
Thickness mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MRE-2XCH-1P0.75

1×2×0.75

0.5

1.2

8.1

90

MRE-2XCH-2P0.75

2×2×0.75

0.5

1.3

9.3

130

MRE-2XCH-3P0.75

3×2×0.75

0.5

1.4

12.4

200

MRE-2XCH-4P0.75

4×2×0.75

0.5

1.4

13.1

230

MRE-2XCH-5P0.75

5×2×0.75

0.5

1.8

15.2

320

MRE-2XCH-6P0.75

6×2×0.75

0.5

1.8

16.1

350

MRE-2XCH-7P0.75

7×2×0.75

0.5

1.8

16.1

370

MRE-2XCH-8P0.75

8×2×0.75

0.5

1.9

17.2

420

MRE-2XCH-10P0.75

10×2×0.75

0.5

1.9

19.1

500

MRE-2XCH-12P0.75

12×2×0.75

0.5

2.0

20.0

560

MRE-2XCH-14P0.75

14×2×0.75

0.5

2.0

20.6

610

MRE-2XCH-16P0.75

16×2×0.75

0.5

2.1

22.2

690

MRE-2XCH-19P0.75

19×2×0.75

0.5

2.1

23.6

790

MRE-2XCH-20P0.75

20×2×0.75

0.5

2.1

23.6

800

MRE-2XCH-24P0.75

24×2×0.75

0.5

2.2

26.8

980

MRE-2XCH-30P0.75

30×2×0.75

0.5

2.3

29.1

1160

MRE-2XCH-37P0.75

37×2×0.75

0.5

2.4

31.1

1360

MRE-2XCH-1P1.0

1×2×1.0

0.5

1.3

8.7

110

MRE-2XCH-2P1.0

2×2×1.0

0.5

1.3

9.7

150

MRE-2XCH-3P1.0

3×2×1.0

0.5

1.4

13.2

230

MRE-2XCH-4P1.0

4×2×1.0

0.5

1.8

14.6

310

MRE-2XCH-5P1.0

5×2×1.0

0.5

1.8

16.1

360

MRE-2XCH-6P1.0

6×2×1.0

0.5

1.9

17.3

420

MRE-2XCH-7P1.0

7×2×1.0

0.5

1.9

17.3

440

MRE-2XCH-8P1.0

8×2×1.0

0.5

1.9

18.3

490

MRE-2XCH-10P1.0

10×2×1.0

0.5

2.0

20.5

590

MRE-2XCH-12P1.0

12×2×1.0

0.5

2.0

21.3

660

MRE-2XCH-14P1.0

14×2×1.0

0.5

2.1

22.2

730

MRE-2XCH-16P1.0

16×2×1.0

0.5

2.1

23.7

820

MRE-2XCH-19P1.0

19×2×1.0

0.5

2.2

25.4

940

MRE-2XCH-20P1.0

20×2×1.0

0.5

2.2

25.4

960

MRE-2XCH-24P1.0

24×2×1.0

0.5

2.3

28.9

1170

MRE-2XCH-30P1.0

30×2×1.0

0.5

2.4

31.3

1400

MRE-2XCH-37P1.0

37×2×1.0

0.5

2.5

33.5

1640

MRE-2XCH-1P1.5

1×2×1.5

0.6

1.3

9.7

140

MRE-2XCH-2P1.5

2×2×1.5

0.6

1.3

10.9

190

MRE-2XCH-3P1.5

3×2×1.5

0.6

1.8

15.7

340

MRE-2XCH-4P1.5

4×2×1.5

0.6

1.9

16.8

400

MRE-2XCH-5P1.5

5×2×1.5

0.6

1.9

18.6

480

MRE-2XCH-6P1.5

6×2×1.5

0.6

2.0

20.0

550

MRE-2XCH-7P1.5

7×2×1.5

0.6

2.0

20.0

590

MRE-2XCH-8P1.5

8×2×1.5

0.6

2.0

21.2

650

MRE-2XCH-10P1.5

10×2×1.5

0.6

2.1

23.8

800

MRE-2XCH-12P1.5

12×2×1.5

0.6

2.2

24.9

900

MRE-2XCH-14P1.5

14×2×1.5

0.6

2.2

25.8

990

MRE-2XCH-16P1.5

16×2×1.5

0.6

2.3

27.8

1130

MRE-2XCH-19P1.5

19×2×1.5

0.6

2.3

29.6

1290

MRE-2XCH-20P1.5

20×2×1.5

0.6

2.3

29.6

1320

MRE-2XCH-24P1.5

24×2×1.5

0.6

2.5

33.9

1630

MRE-2XCH-30P1.5

30×2×1.5

0.6

2.8

37.3

2040

MRE-2XCH-37P1.5

37×2×1.5

0.6

2.9

39.9

2390

MRE-2XCH-1T0.75

1×3×0.75

0.5

1.3

8.7

110

MRE-2XCH-2T0.75

2×3×0.75

0.5

1.4

12.6

210

MRE-2XCH-3T0.75

3×3×0.75

0.5

1.4

13.3

240

MRE-2XCH-4T0.75

4×3×0.75

0.5

1.8

15.2

330

MRE-2XCH-5T0.75

5×3×0.75

0.5

1.9

16.8

400

MRE-2XCH-6T0.75

6×3×0.75

0.5

1.9

18.6

470

MRE-2XCH-7T0.75

7×3×0.75

0.5

1.9

18.6

490

MRE-2XCH-8T0.75

8×3×0.75

0.5

2.0

20.0

560

MRE-2XCH-10T0.75

10×3×0.75

0.5

2.1

22.5

690

MRE-2XCH-12T0.75

12×3×0.75

0.5

2.1

23.6

770

MRE-2XCH-14T0.75

14×3×0.75

0.5

2.1

24.5

850

MRE-2XCH-16T0.75

16×3×0.75

0.5

2.2

26.1

950

MRE-2XCH-19T0.75

19×3×0.75

0.5

2.3

28.2

1100

MRE-2XCH-20T0.75

20×3×0.75

0.5

2.3

28.6

1140

MRE-2XCH-24T0.75

24×3×0.75

0.5

2.4

31.1

1340

MRE-2XCH-30T0.75

30×3×0.75

0.5

2.5

34.3

1620

MRE-2XCH-32T0.75

32×3×0.75

0.5

2.5

35.4

1720

MRE-2XCH-1T1.0

1×3×1.0

0.5

1.3

9.1

130

MRE-2XCH-2T1.0

2×3×1.0

0.5

1.4

13.4

240

MRE-2XCH-3T1.0

3×3×1.0

0.5

1.8

14.9

320

MRE-2XCH-4T1.0

4×3×1.0

0.5

1.8

16.1

380

MRE-2XCH-5T1.0

5×3×1.0

0.5

1.9

17.8

460

MRE-2XCH-6T1.0

6×3×1.0

0.5

2.0

20.0

560

MRE-2XCH-7T1.0

7×3×1.0

0.5

2.0

20.0

590

MRE-2XCH-8T1.0

8×3×1.0

0.5

2.0

21.3

660

MRE-2XCH-10T1.0

10×3×1.0

0.5

2.1

24.0

810

MRE-2XCH-12T1.0

12×3×1.0

0.5

2.2

25.4

920

MRE-2XCH-14T1.0

14×3×1.0

0.5

2.2

26.4

1020

MRE-2XCH-16T1.0

16×3×1.0

0.5

2.3

28.1

1150

MRE-2XCH-19T1.0

19×3×1.0

0.5

2.4

30.3

1330

MRE-2XCH-20T1.0

20×3×1.0

0.5

2.4

30.8

1380

MRE-2XCH-24T1.0

24×3×1.0

0.5

2.5

33.5

1620

MRE-2XCH-30T1.0

30×3×1.0

0.5

2.8

37.5

2060

MRE-2XCH-32T1.0

32×3×1.0

0.5

2.9

38.9

2190

MRE-2XCH-1T1.5

1×3×1.5

0.6

1.3

10.2

160

MRE-2XCH-2T1.5

2×3×1.5

0.6

1.8

16.0

350

MRE-2XCH-3T1.5

3×3×1.5

0.6

1.9

17.1

430

MRE-2XCH-4T1.5

4×3×1.5

0.6

1.9

18.6

510

MRE-2XCH-5T1.5

5×3×1.5

0.6

2.0

20.6

620

MRE-2XCH-6T1.5

6×3×1.5

0.6

2.1

23.2

750

MRE-2XCH-7T1.5

7×3×1.5

0.6

2.1

23.2

800

MRE-2XCH-8T1.5

8×3×1.5

0.6

2.2

24.9

900

MRE-2XCH-10T1.5

10×3×1.5

0.6

2.3

28.1

1110

MRE-2XCH-12T1.5

12×3×1.5

0.6

2.3

29.6

1260

MRE-2XCH-14T1.5

14×3×1.5

0.6

2.4

31.0

1410

MRE-2XCH-16T1.5

16×3×1.5

0.6

2.5

33.0

1590

MRE-2XCH-19T1.5

19×3×1.5

0.6

2.5

35.4

1830

MRE-2XCH-20T1.5

20×3×1.5

0.6

2.8

36.7

2010

MRE-2XCH-24T1.5

24×3×1.5

0.6

2.9

39.9

2360

MRE-2XCH-30T1.5

30×3×1.5

0.6

3.1

44.2

2880

MRE-2XCH-32T1.5

32×3×1.5

0.6

3.1

45.7

3060
