MRE-2XCH PiMF/TiMF 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened & Armoured Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)

MRE-2XCH PiMF/TiMF 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened & Armoured Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)

Application
These cables are used on board of ships at all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards
 IEC 60092-350/351/376/359
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

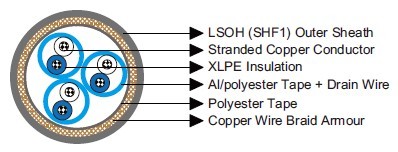

Construction
 Conductors: Class 2 stranded copper conductor.
 Insulation: XLPE.
 Cabling Element: Pair/Triple.
 Individual Screen: Al/polyester tape.
 Drain Wire: Tinned copper wire.
 Inner Covering: Lapped polyester tape.
 Armour: Copper wire braid.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No.

Construction
No. of elements×No. of cores in element×Cross
section(mm²)

Nominal Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal Overall Diameter mm

Nominal Weight kg/km

MRE-2XCH PiMF-1P0.75

1×2×0.75

0.5

1.2

8.3

110

MRE-2XCH PiMF-2P0.75

2×2×0.75

0.5

1.4

12.2

200

MRE-2XCH PiMF-3P0.75

3×2×0.75

0.5

1.4

13.0

240

MRE-2XCH PiMF-4P0.75

4×2×0.75

0.5

1.7

14.4

310

MRE-2XCH PiMF-5P0.75

5×2×0.75

0.5

1.7

15.9

370

MRE-2XCH PiMF-6P0.75

6×2×0.75

0.5

1.9

17.1

430

MRE-2XCH PiMF-7P0.75

7×2×0.75

0.5

1.9

17.1

450

MRE-2XCH PiMF-8P0.75

8×2×0.75

0.5

1.9

18.0

500

MRE-2XCH PiMF-10P0.75

10×2×0.75

0.5

2.0

20.2

610

MRE-2XCH PiMF-12P0.75

12×2×0.75

0.5

2.0

20.9

680

MRE-2XCH PiMF-14P0.75

14×2×0.75

0.5

2.0

21.7

750

MRE-2XCH PiMF-16P0.75

16×2×0.75

0.5

2.1

23.3

850

MRE-2XCH PiMF-19P0.75

19×2×0.75

0.5

2.2

25.0

980

MRE-2XCH PiMF-20P0.75

20×2×0.75

0.5

2.2

25.0

1010

MRE-2XCH PiMF-24P0.75

24×2×0.75

0.5

2.3

28.4

1220

MRE-2XCH PiMF-30P0.75

30×2×0.75

0.5

2.4

30.8

1460

MRE-2XCH PiMF-37P0.75

37×2×0.75

0.5

2.5

33.0

1720

MRE-2XCH PiMF-1P1.0

1×2×1.0

0.5

1.3

8.9

120

MRE-2XCH PiMF-2P1.0

2×2×1.0

0.5

1.4

12.9

230

MRE-2XCH PiMF-3P1.0

3×2×1.0

0.5

1.8

14.4

310

MRE-2XCH PiMF-4P1.0

4×2×1.0

0.5

1.8

15.2

360

MRE-2XCH PiMF-5P1.0

5×2×1.0

0.5

1.8

17.0

440

MRE-2XCH PiMF-6P1.0

6×2×1.0

0.5

1.8

18.1

500

MRE-2XCH PiMF-7P1.0

7×2×1.0

0.5

1.8

18.1

530

MRE-2XCH PiMF-8P1.0

8×2×1.0

0.5

1.8

19.1

590

MRE-2XCH PiMF-10P1.0

10×2×1.0

0.5

2.0

21.4

720

MRE-2XCH PiMF-12P1.0

12×2×1.0

0.5

2.1

22.4

820

MRE-2XCH PiMF-14P1.0

14×2×1.0

0.5

2.1

23.2

900

MRE-2XCH PiMF-16P1.0

16×2×1.0

0.5

2.2

25.0

1030

MRE-2XCH PiMF-19P1.0

19×2×1.0

0.5

2.2

26.6

1180

MRE-2XCH PiMF-20P1.0

20×2×1.0

0.5

2.2

26.6

1210

MRE-2XCH PiMF-24P1.0

24×2×1.0

0.5

2.4

30.4

1480

MRE-2XCH PiMF-30P1.0

30×2×1.0

0.5

2.5

33.0

1780

MRE-2XCH PiMF-37P1.0

37×2×1.0

0.5

2.5

35.2

2090

MRE-2XCH PiMF-1P1.5

1×2×1.5

0.6

1.3

9.9

150

MRE-2XCH PiMF-2P1.5

2×2×1.5

0.6

1.8

15.3

320

MRE-2XCH PiMF-3P1.5

3×2×1.5

0.6

1.8

16.3

390

MRE-2XCH PiMF-4P1.5

4×2×1.5

0.6

1.8

17.4

460

MRE-2XCH PiMF-5P1.5

5×2×1.5

0.6

1.8

19.5

560

MRE-2XCH PiMF-6P1.5

6×2×1.5

0.6

2.0

20.8

640

MRE-2XCH PiMF-7P1.5

7×2×1.5

0.6

2.0

20.8

690

MRE-2XCH PiMF-8P1.5

8×2×1.5

0.6

2.1

22.2

770

MRE-2XCH PiMF-10P1.5

10×2×1.5

0.6

2.2

24.9

950

MRE-2XCH PiMF-12P1.5

12×2×1.5

0.6

2.2

25.9

1070

MRE-2XCH PiMF-14P1.5

14×2×1.5

0.6

2.2

26.8

1180

MRE-2XCH PiMF-16P1.5

16×2×1.5

0.6

2.3

28.9

1350

MRE-2XCH PiMF-19P1.5

19×2×1.5

0.6

2.4

31.0

1560

MRE-2XCH PiMF-20P1.5

20×2×1.5

0.6

2.4

31.0

1600

MRE-2XCH PiMF-24P1.5

24×2×1.5

0.6

2.5

35.3

1950

MRE-2XCH PiMF-30P1.5

30×2×1.5

0.6

2.9

39.0

2450

MRE-2XCH PiMF-37P1.5

37×2×1.5

0.6

3.0

41.8

2900

MRE-2XCH TiMF-1T0.75

1×3×0.75

0.5

1.3

8.9

120

MRE-2XCH TiMF-2T0.75

2×3×0.75

0.5

1.4

13.2

230

MRE-2XCH TiMF-3T0.75

3×3×0.75

0.5

1.8

14.6

320

MRE-2XCH TiMF-4T0.75

4×3×0.75

0.5

1.8

15.8

380

MRE-2XCH TiMF-5T0.75

5×3×0.75

0.5

1.8

17.5

460

MRE-2XCH TiMF-6T0.75

6×3×0.75

0.5

2.0

19.6

550

MRE-2XCH TiMF-7T0.75

7×3×0.75

0.5

2.0

19.6

580

MRE-2XCH TiMF-8T0.75

8×3×0.75

0.5

2.0

20.9

650

MRE-2XCH TiMF-10T0.75

10×3×0.75

0.5

2.1

23.5

800

MRE-2XCH TiMF-12T0.75

12×3×0.75

0.5

2.2

24.9

910

MRE-2XCH TiMF-14T0.75

14×3×0.75

0.5

2.2

25.9

1010

MRE-2XCH TiMF-16T0.75

16×3×0.75

0.5

2.3

27.6

1140

MRE-2XCH TiMF-19T0.75

19×3×0.75

0.5

2.3

29.5

1300

MRE-2XCH TiMF-20T0.75

20×3×0.75

0.5

2.3

30.0

1350

MRE-2XCH TiMF-24T0.75

24×3×0.75

0.5

2.4

32.6

1590

MRE-2XCH TiMF-30T0.75

30×3×0.75

0.5

2.8

36.7

2030

MRE-2XCH TiMF-32T0.75

32×3×0.75

0.5

2.8

37.9

2150

MRE-2XCH TiMF-1T1.0

1×3×1.0

0.5

1.3

9.3

140

MRE-2XCH TiMF-2T1.0

2×3×1.0

0.5

1.8

14.6

310

MRE-2XCH TiMF-3T1.0

3×3×1.0

0.5

1.8

15.4

370

MRE-2XCH TiMF-4T1.0

4×3×1.0

0.5

1.8

16.9

450

MRE-2XCH TiMF-5T1.0

5×3×1.0

0.5

1.8

18.5

530

MRE-2XCH TiMF-6T1.0

6×3×1.0

0.5

2.0

20.8

640

MRE-2XCH TiMF-7T1.0

7×3×1.0

0.5

2.0

20.8

680

MRE-2XCH TiMF-8T1.0

8×3×1.0

0.5

2.1

22.4

780

MRE-2XCH TiMF-10T1.0

10×3×1.0

0.5

2.2

25.2

960

MRE-2XCH TiMF-12T1.0

12×3×1.0

0.5

2.2

26.5

1080

MRE-2XCH TiMF-14T1.0

14×3×1.0

0.5

2.3

27.8

1220

MRE-2XCH TiMF-16T1.0

16×3×1.0

0.5

2.3

29.4

1360

MRE-2XCH TiMF-19T1.0

19×3×1.0

0.5

2.4

31.7

1580

MRE-2XCH TiMF-20T1.0

20×3×1.0

0.5

2.4

32.2

1640

MRE-2XCH TiMF-24T1.0

24×3×1.0

0.5

2.5

35.0

1930

MRE-2XCH TiMF-30T1.0

30×3×1.0

0.5

2.9

39.4

2470

MRE-2XCH TiMF-32T1.0

32×3×1.0

0.5

2.9

40.7

2620

MRE-2XCH TiMF-1T1.5

1×3×1.5

0.6

1.3

10.4

170

MRE-2XCH TiMF-2T1.5

2×3×1.5

0.6

1.8

16.5

380

MRE-2XCH TiMF-3T1.5

3×3×1.5

0.6

1.9

17.7

480

MRE-2XCH TiMF-4T1.5

4×3×1.5

0.6

1.9

19.2

570

MRE-2XCH TiMF-5T1.5

5×3×1.5

0.6

1.9

21.3

690

MRE-2XCH TiMF-6T1.5

6×3×1.5

0.6

2.1

24.0

840

MRE-2XCH TiMF-7T1.5

7×3×1.5

0.6

2.1

24.0

900

MRE-2XCH TiMF-8T1.5

8×3×1.5

0.6

2.2

25.8

1020

MRE-2XCH TiMF-10T1.5

10×3×1.5

0.6

2.3

29.1

1260

MRE-2XCH TiMF-12T1.5

12×3×1.5

0.6

2.4

30.9

1450

MRE-2XCH TiMF-14T1.5

14×3×1.5

0.6

2.4

32.2

1620

MRE-2XCH TiMF-16T1.5

16×3×1.5

0.6

2.5

34.3

1830

MRE-2XCH TiMF-19T1.5

19×3×1.5

0.6

2.8

37.5

2210

MRE-2XCH TiMF-20T1.5

20×3×1.5

0.6

2.8

38.1

2300

MRE-2XCH TiMF-24T1.5

24×3×1.5

0.6

3.0

41.6

2720

MRE-2XCH TiMF-30T1.5

30×3×1.5

0.6

3.1

45.9

3310

MRE-2XCH TiMF-32T1.5

32×3×1.5

0.6

3.2

47.7

3530
