MRE-2XH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Instrumentation & Control Cables (Multicore)

Application
These cables are used on board of ships at all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards
 IEC 60092-350/351/376/359
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

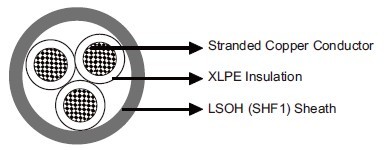

Construction
 Conductors: Class 2 stranded copper conductor.
 Insulation: XLPE.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
White with printed number.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 4×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight
