MRE-M2X(St)CH 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened & Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

MRE-M2X(St)CH 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened & Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

Application
These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards
 IEC 60092-350/351/376/359
 IEC 60331-21
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

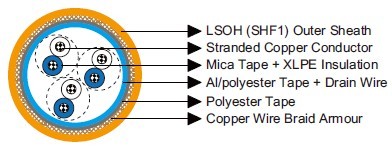

Construction
 Conductors: Class 2 stranded copper conductor.
 Insulation: Mica tape + XLPE insulation.
 Cabling Element: Pair/Triple.
 Overall Screen: Al/polyester tape.
 Drain Wire: Tinned copper wire.
 Inner Covering: Lapped polyester tape.
 Armour: Copper wire braid.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No.

Construction
No. of elements×No. of cores in element×Cross
section(mm²)

Nominal Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal Overall Diameter mm

Nominal Weight kg/km

MRE-M2X(St)CH-1P0.75

1×2×0.75

0.5

1.1

9.3

120

MRE-M2X(St)CH-2P0.75

2×2×0.75*

0.5

1.1

10.5

160

MRE-M2X(St)CH-3P0.75

3×2×0.75

0.5

1.3

14.8

260

MRE-M2X(St)CH-4P0.75

4×2×0.75

0.5

1.3

15.6

300

MRE-M2X(St)CH-7P0.75

7×2×0.75

0.5

1.4

18.6

430

MRE-M2X(St)CH-8P0.75

8×2×0.75

0.5

1.5

19.9

480

MRE-M2X(St)CH-10P0.75

10×2×0.75

0.5

1.6

22.4

580

MRE-M2X(St)CH-12P07.5

12×2×0.75

0.5

1.6

23.2

640

MRE-M2X(St)CH-14P0.75

14×2×0.75

0.5

1.6

24.0

710

MRE-M2X(St)CH-16P0.75

16×2×0.75

0.5

1.7

25.9

800

MRE-M2X(St)CH-19P0.75

19×2×0.75

0.5

1.7

27.0

890

MRE-M2X(St)CH-24P0.75

24×2×0.75

0.5

1.9

30.8

1110

MRE-M2X(St)CH-30P0.75

30×2×0.75

0.5

2.0

34.4

1350

MRE-M2X(St)CH-32P0.75

32×2×0.75

0.5

2.0

34.9

1410

MRE-M2X(St)CH-37P0.75

37×2×0.75

0.5

2.1

37.3

1680

MRE-M2X(St)CH-1P1.0

1×2×1.0

0.5

1.1

9.7

130

MRE-M2X(St)CH-2P1.0

2×2×1.0*

0.5

1.1

10.9

170

MRE-M2X(St)CH-3P1.0

3×2×1.0

0.5

1.3

15.5

300

MRE-M2X(St)CH-4P1.0

4×2×1.0

0.5

1.3

16.4

340

MRE-M2X(St)CH-7P1.0

7×2×1.0

0.5

1.5

19.8

500

MRE-M2X(St)CH-8P1.0

8×2×1.0

0.5

1.5

21.0

560

MRE-M2X(St)CH-10P1.0

10×2×1.0

0.5

1.6

23.6

660

MRE-M2X(St)CH-12P1.0

12×2×1.0

0.5

1.6

24.5

740

MRE-M2X(St)CH-14P1.0

14×2×1.0

0.5

1.7

25.6

830

MRE-M2X(St)CH-16P1.0

16×2×1.0

0.5

1.8

27.6

940

MRE-M2X(St)CH-19P1.0

19×2×1.0

0.5

1.8

28.8

1060

MRE-M2X(St)CH-24P1.0

24×2×1.0

0.5

1.9

32.6

1300

MRE-M2X(St)CH-30P1.0

30×2×1.0

0.5

2.1

37.1

1690

MRE-M2X(St)CH-32P1.0

32×2×1.0

0.5

2.1

37.7

1770

MRE-M2X(St)CH-37P1.0

37×2×1.0

0.5

2.2

39.7

1990

MRE-M2X(St)CH-1P1.5

1×2×1.5

0.6

1.1

10.5

150

MRE-M2X(St)CH-2P1.5

2×2×1.5*

0.6

1.2

12.1

220

MRE-M2X(St)CH-3P1.5

3×2×1.5

0.6

1.4

17.2

360

MRE-M2X(St)CH-4P1.5

4×2×1.5

0.6

1.4

18.2

420

MRE-M2X(St)CH-7P1.5

7×2×1.5

0.6

1.5

21.8

620

MRE-M2X(St)CH-8P1.5

8×2×1.5

0.6

1.6

23.4

700

MRE-M2X(St)CH-10P1.5

10×2×1.5

0.6

1.7

26.3

840

MRE-M2X(St)CH-12P1.5

12×2×1.5

0.6

1.7

27.3

940

MRE-M2X(St)CH-14P1.5

14×2×1.5

0.6

1.8

28.5

1060

MRE-M2X(St)CH-16P1.5

16×2×1.5

0.6

1.9

30.8

1200

MRE-M2X(St)CH-19P1.5

19×2×1.5

0.6

1.9

32.1

1350

MRE-M2X(St)CH-24P1.5

24×2×1.5

0.6

2.1

37.1

1780

MRE-M2X(St)CH-30P1.5

30×2×1.5

0.6

2.3

41.6

2180

MRE-M2X(St)CH-32P1.5

32×2×1.5

0.6

2.3

42.3

2280

MRE-M2X(St)CH-37P1.5

37×2×1.5

0.6

2.4

44.5

2570

MRE-M2X(St)CH-1T0.75

1×3×0.75

0.5

1.1

9.7

130

MRE-M2X(St)CH-2T0.75

2×3×0.75

0.5

1.3

15.0

270

MRE-M2X(St)CH-3T0.75

3×3×0.75

0.5

1.3

15.8

320

MRE-M2X(St)CH-4T0.75

4×3×0.75

0.5

1.4

17.4

390

MRE-M2X(St)CH-7T0.75

7×3×0.75

0.5

1.5

21.5

590

MRE-M2X(St)CH-8T0.75

8×3×0.75

0.5

1.6

23.1

660

MRE-M2X(St)CH-10T0.75

10×3×0.75

0.5

1.7

26.1

790

MRE-M2X(St)CH-12T07.5

12×3×0.75

0.5

1.8

27.7

900

MRE-M2X(St)CH-14T0.75

14×3×0.75

0.5

1.8

28.8

1000

MRE-M2X(St)CH-16T0.75

16×3×0.75

0.5

1.9

30.7

1130

MRE-M2X(St)CH-19T0.75

19×3×0.75

0.5

2.0

33.1

1300

MRE-M2X(St)CH-24T0.75

24×3×0.75

0.5

2.1

37.1

1680

MRE-M2X(St)CH-30T0.75

30×3×0.75

0.5

2.3

41.1

2040

MRE-M2X(St)CH-32T0.75

32×3×0.75

0.5

2.3

42.5

2150

MRE-M2X(St)CH-37T0.75

37×3×0.75

0.5

2.4

44.7

2420

MRE-M2X(St)CH-1T1.0

1×3×1.0

0.5

1.1

10.2

150

MRE-M2X(St)CH-2T1.0

2×3×1.0

0.5

1.3

15.9

310

MRE-M2X(St)CH-3T1.0

3×3×1.0

0.5

1.4

17.0

380

MRE-M2X(St)CH-4T1.0

4×3×1.0

0.5

1.4

18.5

450

MRE-M2X(St)CH-7T1.0

7×3×1.0

0.5

1.6

23.1

690

MRE-M2X(St)CH-8T1.0

8×3×1.0

0.5

1.6

24.6

770

MRE-M2X(St)CH-10T1.0

10×3×1.0

0.5

1.8

28.0

930

MRE-M2X(St)CH-12T1.0

12×3×1.0

0.5

1.8

29.5

1050

MRE-M2X(St)CH-14T1.0

14×3×1.0

0.5

1.9

30.9

1190

MRE-M2X(St)CH-16T1.0

16×3×1.0

0.5

1.9

32.7

1320

MRE-M2X(St)CH-19T1.0

19×3×1.0

0.5

2.0

35.4

1530

MRE-M2X(St)CH-24T1.0

24×3×1.0

0.5

2.2

39.9

1990

MRE-M2X(St)CH-30T1.0

30×3×1.0

0.5

2.4

44.2

2420

MRE-M2X(St)CH-32T1.0

32×3×1.0

0.5

2.4

45.7

2560

MRE-M2X(St)CH-37T1.0

37×3×1.0

0.5

2.5

48.0

2870

MRE-M2X(St)CH-1T1.5

1×3×1.5

0.6

1.1

11.0

180

MRE-M2X(St)CH-2T1.5

2×3×1.5

0.6

1.4

17.5

370

MRE-M2X(St)CH-3T1.5

3×3×1.5

0.6

1.4

18.5

450

MRE-M2X(St)CH-4T1.5

4×3×1.5

0.6

1.5

20.4

560

MRE-M2X(St)CH-7T1.5

7×3×1.5

0.6

1.7

25.5

870

MRE-M2X(St)CH-8T1.5

8×3×1.5

0.6

1.7

27.2

970

MRE-M2X(St)CH-10T1.5

10×3×1.5

0.6

1.9

31.0

1170

MRE-M2X(St)CH-12T1.5

12×3×1.5

0.6

1.9

32.7

1340

MRE-M2X(St)CH-14T1.5

14×3×1.5

0.6

2.0

34.3

1510

MRE-M2X(St)CH-16T1.5

16×3×1.5

0.6

2.1

37.0

1800

MRE-M2X(St)CH-19T1.5

19×3×1.5

0.6

2.2

39.9

2080

MRE-M2X(St)CH-24T1.5

24×3×1.5

0.6

2.4

44.4

2560

MRE-M2X(St)CH-30T1.5

30×3×1.5

0.6

2.6

49.2

3110

MRE-M2X(St)CH-32T1.5

32×3×1.5

0.6

2.6

50.9

3300

MRE-M2X(St)CH-37T1.5

37×3×1.5

0.6

2.7

53.4

3710

*: 2 pairs are assembled as a quad.
