MRE-M2XCH PiMF/TiMF 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened & Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

MRE-M2XCH PiMF/TiMF 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened & Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

Application
These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards
 IEC 60092-350/351/376/359
 IEC 60331-21
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

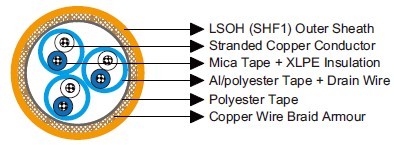

Construction
 Conductors: Class 2 stranded copper conductor.
 Insulation: Mica tape + XLPE.
 Cabling Element: Pair/Triple.
 Individual Screen: Al/polyester tape.
 Drain Wire: Tinned copper wire.
 Inner Covering: Lapped polyester tape.
 Armour: Copper wire braid.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No.

Construction
No. of elements×No. of cores in element×Cross
section(mm²)

Nominal Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal Overall Diameter mm

Nominal Weight kg/km

MRE-M2XCH PiMF-1P0.75

1×2×0.75

0.5

1.3

9.3

130

MRE-M2XCH PiMF-2P0.75

2×2×0.75

0.5

1.4

13.6

230

MRE-M2XCH PiMF-3P0.75

3×2×0.75

0.5

1.8

15.1

320

MRE-M2XCH PiMF-4P0.75

4×2×0.75

0.5

1.8

16.0

370

MRE-M2XCH PiMF-5P0.75

5×2×0.75

0.5

1.9

17.9

450

MRE-M2XCH PiMF-6P0.75

6×2×0.75

0.5

1.9

19.1

510

MRE-M2XCH PiMF-7P0.75

7×2×0.75

0.5

1.9

19.1

540

MRE-M2XCH PiMF-8P0.75

8×2×0.75

0.5

2.0

20.4

610

MRE-M2XCH PiMF-10P0.75

10×2×0.75

0.5

2.1

22.9

740

MRE-M2XCH PiMF-12P0.75

12×2×0.75

0.5

2.1

23.7

830

MRE-M2XCH PiMF-14P0.75

14×2×0.75

0.5

2.1

24.6

910

MRE-M2XCH PiMF-16P0.75

16×2×0.75

0.5

2.2

26.5

1040

MRE-M2XCH PiMF-19P0.75

19×2×0.75

0.5

2.3

28.4

1200

MRE-M2XCH PiMF-20P0.75

20×2×0.75

0.5

2.3

28.4

1230

MRE-M2XCH PiMF-24P0.75

24×2×0.75

0.5

2.4

32.3

1490

MRE-M2XCH PiMF-30P0.75

30×2×0.75

0.5

2.5

35.1

1790

MRE-M2XCH PiMF-37P0.75

37×2×0.75

0.5

2.8

38.1

2200

MRE-M2XCH PiMF-1P1.0

1×2×1.0

0.5

1.3

9.7

140

MRE-M2XCH PiMF-2P1.0

2×2×1.0

0.5

1.8

15.0

300

MRE-M2XCH PiMF-3P1.0

3×2×1.0

0.5

1.8

15.9

360

MRE-M2XCH PiMF-4P1.0

4×2×1.0

0.5

1.9

17.0

430

MRE-M2XCH PiMF-5P1.0

5×2×1.0

0.5

1.9

18.8

510

MRE-M2XCH PiMF-6P1.0

6×2×1.0

0.5

2.0

20.3

600

MRE-M2XCH PiMF-7P1.0

7×2×1.0

0.5

2.0

20.3

630

MRE-M2XCH PiMF-8P1.0

8×2×1.0

0.5

2.0

21.5

700

MRE-M2XCH PiMF-10P1.0

10×2×1.0

0.5

2.1

24.1

860

MRE-M2XCH PiMF-12P1.0

12×2×1.0

0.5

2.2

25.2

980

MRE-M2XCH PiMF-14P1.0

14×2×1.0

0.5

2.2

26.1

1080

MRE-M2XCH PiMF-16P1.0

16×2×1.0

0.5

2.3

28.2

1230

MRE-M2XCH PiMF-19P1.0

19×2×1.0

0.5

2.3

30.0

1410

MRE-M2XCH PiMF-20P1.0

20×2×1.0

0.5

2.3

30.0

1450

MRE-M2XCH PiMF-24P1.0

24×2×1.0

0.5

2.5

34.4

1780

MRE-M2XCH PiMF-30P1.0

30×2×1.0

0.5

2.8

37.8

2220

MRE-M2XCH PiMF-37P1.0

37×2×1.0

0.5

2.9

40.5

2620

MRE-M2XCH PiMF-1P1.5

1×2×1.5

0.6

1.3

10.7

170

MRE-M2XCH PiMF-2P1.5

2×2×1.5

0.6

1.9

16.9

380

MRE-M2XCH PiMF-3P1.5

3×2×1.5

0.6

1.9

17.9

450

MRE-M2XCH PiMF-4P1.5

4×2×1.5

0.6

1.9

19.0

530

MRE-M2XCH PiMF-5P1.5

5×2×1.5

0.6

2.0

21.3

650

MRE-M2XCH PiMF-6P1.5

6×2×1.5

0.6

2.1

23.0

750

MRE-M2XCH PiMF-7P1.5

7×2×1.5

0.6

2.1

23.0

800

MRE-M2XCH PiMF-8P1.5

8×2×1.5

0.6

2.1

24.4

890

MRE-M2XCH PiMF-10P1.5

10×2×1.5

0.6

2.3

27.6

1110

MRE-M2XCH PiMF-12P1.5

12×2×1.5

0.6

2.3

28.7

1250

MRE-M2XCH PiMF-14P1.5

14×2×1.5

0.6

2.3

29.7

1380

MRE-M2XCH PiMF-16P1.5

16×2×1.5

0.6

2.4

32.1

1580

MRE-M2XCH PiMF-19P1.5

19×2×1.5

0.6

2.5

34.4

1820

MRE-M2XCH PiMF-20P1.5

20×2×1.5

0.6

2.5

34.4

1870

MRE-M2XCH PiMF-24P1.5

24×2×1.5

0.6

2.9

39.9

2400

MRE-M2XCH PiMF-30P1.5

30×2×1.5

0.6

3.0

43.3

2870

MRE-M2XCH PiMF-37P1.5

37×2×1.5

0.6

3.2

46.6

3410

MRE-M2XCH TiMF-1T0.75

1×3×0.75

0.5

1.3

9.7

140

MRE-M2XCH TiMF-2T0.75

2×3×0.75

0.5

1.8

15.4

320

MRE-M2XCH TiMF-3T0.75

3×3×0.75

0.5

1.8

16.2

380

MRE-M2XCH TiMF-4T0.75

4×3×0.75

0.5

1.9

17.9

460

MRE-M2XCH TiMF-5T0.75

5×3×0.75

0.5

2.0

19.8

560

MRE-M2XCH TiMF-6T0.75

6×3×0.75

0.5

2.1

22.2

670

MRE-M2XCH TiMF-7T0.75

7×3×0.75

0.5

2.1

22.2

710

MRE-M2XCH TiMF-8T0.75

8×3×0.75

0.5

2.1

23.7

800

MRE-M2XCH TiMF-10T0.75

10×3×0.75

0.5

2.2

26.7

980

MRE-M2XCH TiMF-12T0.75

12×3×0.75

0.5

2.3

28.3

1120

MRE-M2XCH TiMF-14T0.75

14×3×0.75

0.5

2.3

29.4

1240

MRE-M2XCH TiMF-16T0.75

16×3×0.75

0.5

2.4

31.4

1400

MRE-M2XCH TiMF-19T0.75

19×3×0.75

0.5

2.5

33.9

1620

MRE-M2XCH TiMF-20T0.75

20×3×0.75

0.5

2.5

34.4

1680

MRE-M2XCH TiMF-24T0.75

24×3×0.75

0.5

2.8

37.9

2070

MRE-M2XCH TiMF-30T0.75

30×3×0.75

0.5

3.0

42.0

2520

MRE-M2XCH TiMF-32T0.75

32×3×0.75

0.5

3.0

43.4

2670

MRE-M2XCH TiMF-1T1.0

1×3×1.0

0.5

1.3

10.1

160

MRE-M2XCH TiMF-2T1.0

2×3×1.0

0.5

1.8

16.1

360

MRE-M2XCH TiMF-3T1.0

3×3×1.0

0.5

1.9

17.3

440

MRE-M2XCH TiMF-4T1.0

4×3×1.0

0.5

1.9

18.8

530

MRE-M2XCH TiMF-5T1.0

5×3×1.0

0.5

2.0

20.8

640

MRE-M2XCH TiMF-6T1.0

6×3×1.0

0.5

2.1

23.4

770

MRE-M2XCH TiMF-7T1.0

7×3×1.0

0.5

2.1

23.4

820

MRE-M2XCH TiMF-8T1.0

8×3×1.0

0.5

2.2

25.2

930

MRE-M2XCH TiMF-10T1.0

10×3×1.0

0.5

2.3

28.4

1150

MRE-M2XCH TiMF-12T1.0

12×3×1.0

0.5

2.3

29.9

1310

MRE-M2XCH TiMF-14T1.0

14×3×1.0

0.5

2.4

31.3

1470

MRE-M2XCH TiMF-16T1.0

16×3×1.0

0.5

2.5

33.4

1660

MRE-M2XCH TiMF-19T1.0

19×3×1.0

0.5

2.8

36.5

2010

MRE-M2XCH TiMF-20T1.0

20×3×1.0

0.5

2.8

37.1

2090

MRE-M2XCH TiMF-24T1.0

24×3×1.0

0.5

2.9

40.3

2450

MRE-M2XCH TiMF-30T1.0

30×3×1.0

0.5

3.1

44.7

3000

MRE-M2XCH TiMF-32T1.0

32×3×1.0

0.5

3.1

46.2

3180

MRE-M2XCH TiMF-1T1.5

1×3×1.5

0.6

1.4

11.4

200

MRE-M2XCH TiMF-2T1.5

2×3×1.5

0.6

1.9

18.2

450

MRE-M2XCH TiMF-3T1.5

3×3×1.5

0.6

2.0

19.5

560

MRE-M2XCH TiMF-4T1.5

4×3×1.5

0.6

2.0

21.3

670

MRE-M2XCH TiMF-5T1.5

5×3×1.5

0.6

2.1

23.6

820

MRE-M2XCH TiMF-6T1.5

6×3×1.5

0.6

2.2

26.6

990

MRE-M2XCH TiMF-7T1.5

7×3×1.5

0.6

2.2

26.6

1060

MRE-M2XCH TiMF-8T1.5

8×3×1.5

0.6

2.3

28.6

1200

MRE-M2XCH TiMF-10T1.5

10×3×1.5

0.6

2.4

32.3

1480

MRE-M2XCH TiMF-12T1.5

12×3×1.5

0.6

2.5

34.3

1700

MRE-M2XCH TiMF-14T1.5

14×3×1.5

0.6

2.6

35.9

1920

MRE-M2XCH TiMF-16T1.5

16×3×1.5

0.6

2.9

38.8

2260

MRE-M2XCH TiMF-19T1.5

19×3×1.5

0.6

3.0

41.8

2620

MRE-M2XCH TiMF-20T1.5

20×3×1.5

0.6

3.0

42.5

2720

MRE-M2XCH TiMF-24T1.5

24×3×1.5

0.6

3.1

46.2

3200

MRE-M2XCH TiMF-30T1.5

30×3×1.5

0.6

3.3

51.2

3910

MRE-M2XCH TiMF-32T1.5

32×3×1.5

0.6

3.4

53.2

4180
