MRE-M2XCH 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

MRE-M2XCH 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

Application
These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards
 IEC 60092-350/351/376/359
 IEC 60331-21
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

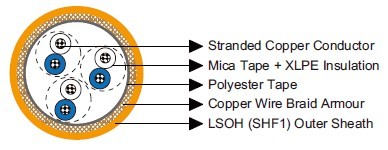

Construction
 Conductors: Class 2 stranded copper conductor.
 Insulation: Mica tape + XLPE.
 Cabling Element: Pair/Triple.
 Inner Covering: Lapped polyester tape.
 Armour: Copper wire braid.
 Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.

Core Identification
Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No.

Construction
No. of elements×No. of cores in element×Cross
section(mm²)

Nominal
Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MRE-M2XCH-1P0.75

1×2×0.75

0.5

1.3

9.1

120

MRE-M2XCH-2P0.75

2×2×0.75

0.5

1.3

10.2

150

MRE-M2XCH-3P0.75

3×2×0.75

0.5

1.8

14.6

280

MRE-M2XCH-4P0.75

4×2×0.75

0.5

1.8

15.4

320

MRE-M2XCH-5P0.75

5×2×0.75

0.5

1.9

17.2

390

MRE-M2XCH-6P0.75

6×2×0.75

0.5

1.9

18.3

440

MRE-M2XCH-7P0.75

7×2×0.75

0.5

1.9

18.3

460

MRE-M2XCH-8P0.75

8×2×0.75

0.5

2.0

19.6

520

MRE-M2XCH-10P0.75

10×2×0.75

0.5

2.0

21.7

620

MRE-M2XCH-12P0.75

12×2×0.75

0.5

2.1

22.8

700

MRE-M2XCH-14P0.75

14×2×0.75

0.5

2.1

23.6

770

MRE-M2XCH-16P0.75

16×2×0.75

0.5

2.2

25.4

870

MRE-M2XCH-19P0.75

19×2×0.75

0.5

2.2

27.0

990

MRE-M2XCH-20P0.75

20×2×0.75

0.5

2.2

27.0

1010

MRE-M2XCH-24P0.75

24×2×0.75

0.5

2.4

30.9

1240

MRE-M2XCH-30P0.75

30×2×0.75

0.5

2.5

33.5

1480

MRE-M2XCH-37P0.75

37×2×0.75

0.5

2.6

35.9

1730

MRE-M2XCH-1P1.0

1×2×1.0

0.5

1.3

9.5

130

MRE-M2XCH-2P1.0

2×2×1.0

0.5

1.3

10.7

170

MRE-M2XCH-3P1.0

3×2×1.0

0.5

1.8

15.3

320

MRE-M2XCH-4P1.0

4×2×1.0

0.5

1.8

16.2

360

MRE-M2XCH-5P1.0

5×2×1.0

0.5

1.9

18.1

440

MRE-M2XCH-6P1.0

6×2×1.0

0.5

2.0

19.5

510

MRE-M2XCH-7P1.0

7×2×1.0

0.5

2.0

19.5

530

MRE-M2XCH-8P1.0

8×2×1.0

0.5

2.0

20.7

590

MRE-M2XCH-10P1.0

10×2×1.0

0.5

2.1

23.2

730

MRE-M2XCH-12P1.0

12×2×1.0

0.5

2.1

24.1

810

MRE-M2XCH-14P1.0

14×2×1.0

0.5

2.2

25.1

900

MRE-M2XCH-16P1.0

16×2×1.0

0.5

2.2

26.9

1010

MRE-M2XCH-19P1.0

19×2×1.0

0.5

2.3

28.8

1160

MRE-M2XCH-20P1.0

20×2×1.0

0.5

2.3

28.8

1190

MRE-M2XCH-24P1.0

24×2×1.0

0.5

2.5

33.0

1460

MRE-M2XCH-30P1.0

30×2×1.0

0.5

2.6

35.8

1740

MRE-M2XCH-37P1.0

37×2×1.0

0.5

2.9

38.8

2140

MRE-M2XCH-1P1.5

1×2×1.5

0.6

1.3

10.5

160

MRE-M2XCH-2P1.5

2×2×1.5

0.6

1.4

12.1

220

MRE-M2XCH-3P1.5

3×2×1.5

0.6

1.9

17.4

400

MRE-M2XCH-4P1.5

4×2×1.5

0.6

1.9

18.4

470

MRE-M2XCH-5P1.5

5×2×1.5

0.6

2.0

20.6

570

MRE-M2XCH-6P1.5

6×2×1.5

0.6

2.1

22.2

660

MRE-M2XCH-7P1.5

7×2×1.5

0.6

2.1

22.2

700

MRE-M2XCH-8P1.5

8×2×1.5

0.6

2.1

23.6

780

MRE-M2XCH-10P1.5

10×2×1.5

0.6

2.2

26.5

950

MRE-M2XCH-12P1.5

12×2×1.5

0.6

2.3

27.7

1070

MRE-M2XCH-14P1.5

14×2×1.5

0.6

2.3

28.7

1180

MRE-M2XCH-16P1.5

16×2×1.5

0.6

2.4

31.0

1350

MRE-M2XCH-19P1.5

19×2×1.5

0.6

2.5

33.2

1560

MRE-M2XCH-20P1.5

20×2×1.5

0.6

2.5

33.2

1590

MRE-M2XCH-24P1.5

24×2×1.5

0.6

2.9

38.5

2060

MRE-M2XCH-30P1.5

30×2×1.5

0.6

3.0

41.8

2450

MRE-M2XCH-37P1.5

37×2×1.5

0.6

3.1

44.7

2880

MRE-M2XCH-1T0.75

1×3×0.75

0.5

1.3

9.5

130

MRE-M2XCH-2T0.75

2×3×0.75

0.5

1.8

14.9

290

MRE-M2XCH-3T0.75

3×3×0.75

0.5

1.8

15.7

340

MRE-M2XCH-4T0.75

4×3×0.75

0.5

1.9

17.2

410

MRE-M2XCH-5T0.75

5×3×0.75

0.5

1.9

18.8

480

MRE-M2XCH-6T0.75

6×3×0.75

0.5

2.0

21.2

590

MRE-M2XCH-7T0.75

7×3×0.75

0.5

2.0

21.2

620

MRE-M2XCH-8T0.75

8×3×0.75

0.5

2.1

22.8

700

MRE-M2XCH-10T0.75

10×3×0.75

0.5

2.2

25.7

860

MRE-M2XCH-12T0.75

12×3×0.75

0.5

2.2

27.0

970

MRE-M2XCH-14T0.75

14×3×0.75

0.5

2.3

28.3

1080

MRE-M2XCH-16T0.75

16×3×0.75

0.5

2.3

29.9

1200

MRE-M2XCH-19T0.75

19×3×0.75

0.5

2.4

32.3

1390

MRE-M2XCH-20T0.75

20×3×0.75

0.5

2.5

33.0

1460

MRE-M2XCH-24T0.75

24×3×0.75

0.5

2.6

35.9

1710

MRE-M2XCH-30T0.75

30×3×0.75

0.5

2.9

40.1

2170

MRE-M2XCH-32T0.75

32×3×0.75

0.5

3.0

41.7

2320

MRE-M2XCH-1T1.0

1×3×1.0

0.5

1.3

9.9

150

MRE-M2XCH-2T1.0

2×3×1.0

0.5

1.8

15.6

320

MRE-M2XCH-3T1.0

3×3×1.0

0.5

1.8

16.5

380

MRE-M2XCH-4T1.0

4×3×1.0

0.5

1.9

18.1

470

MRE-M2XCH-5T1.0

5×3×1.0

0.5

2.0

20.1

560

MRE-M2XCH-6T1.0

6×3×1.0

0.5

2.1

22.6

680

MRE-M2XCH-7T1.0

7×3×1.0

0.5

2.1

22.6

720

MRE-M2XCH-8T1.0

8×3×1.0

0.5

2.1

24.1

810

MRE-M2XCH-10T1.0

10×3×1.0

0.5

2.2

27.2

990

MRE-M2XCH-12T1.0

12×3×1.0

0.5

2.3

28.8

1130

MRE-M2XCH-14T1.0

14×3×1.0

0.5

2.3

30.0

1260

MRE-M2XCH-16T1.0

16×3×1.0

0.5

2.4

31.9

1410

MRE-M2XCH-19T1.0

19×3×1.0

0.5

2.5

34.4

1640

MRE-M2XCH-20T1.0

20×3×1.0

0.5

2.5

35.0

1700

MRE-M2XCH-24T1.0

24×3×1.0

0.5

2.9

38.8

2110

MRE-M2XCH-30T1.0

30×3×1.0

0.5

3.0

42.8

2560

MRE-M2XCH-32T1.0

32×3×1.0

0.5

3.1

44.4

2730

MRE-M2XCH-1T1.5

1×3×1.5

0.6

1.3

11.0

180

MRE-M2XCH-2T1.5

2×3×1.5

0.6

1.9

17.7

410

MRE-M2XCH-3T1.5

3×3×1.5

0.6

1.9

18.7

490

MRE-M2XCH-4T1.5

4×3×1.5

0.6

2.0

20.6

610

MRE-M2XCH-5T1.5

5×3×1.5

0.6

2.1

22.9

740

MRE-M2XCH-6T1.5

6×3×1.5

0.6

2.2

25.8

890

MRE-M2XCH-7T1.5

7×3×1.5

0.6

2.2

25.8

950

MRE-M2XCH-8T1.5

8×3×1.5

0.6

2.3

27.7

1070

MRE-M2XCH-10T1.5

10×3×1.5

0.6

2.4

31.3

1320

MRE-M2XCH-12T1.5

12×3×1.5

0.6

2.5

33.2

1520

MRE-M2XCH-14T1.5

14×3×1.5

0.6

2.5

34.6

1690

MRE-M2XCH-16T1.5

16×3×1.5

0.6

2.8

37.3

1990

MRE-M2XCH-19T1.5

19×3×1.5

0.6

2.9

40.3

2310

MRE-M2XCH-20T1.5

20×3×1.5

0.6

3.0

41.1

2420

MRE-M2XCH-24T1.5

24×3×1.5

0.6

3.1

44.7

2840

MRE-M2XCH-30T1.5

30×3×1.5

0.6

3.3

49.5

3460

MRE-M2XCH-32T1.5

32×3×1.5

0.6

3.3

51.2

3670

*: 2 pairs are assembled as a quad.
