PROFIBUS 1 Pair 0.35mm²

PROFIBUS 1 Pair 0.35mm²

Application
These profibus cables are dedicated for fixed installation on board of ship, used as connection cables for digital signals up to 12MBd.

Standards
 DIN VDE 0472 part 805
 IEC 60332-1&2
 IEC 60754-1/2
 IEC 61034

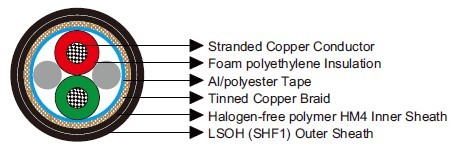

Construction
 Conductors: Stranded bare copper.
 Insulation: Foam polyethylene (cellular HDPE).
 Overall Screen1: Aluminium/polyester tape.
 Overall Screen2: Tinned copper braid.
 Inner Sheath: Halogen-free polymer HM4.
 Outer Sheath: LSOH (SHF1).

Core Identification
Core 1: Red
Core 2: Green

Electrical Characteristics

Characteristic Impedance

Ω

150 ± 15

Mutual Capacitance @800MHz

nF/km

30

Insulation Resistance

MΩ.km

16000

Attenuation @9.6kHz

dB/km

3

Attenuation @38.4kHz

dB/km

5

Attenuation @4kHz

dB/km

22

Attenuation @16kHz

dB/km

45

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 10×OD
Temperature Range: -35℃ ~ +80℃

Dimensions and Weight

Part No.

Construction
No. of elements×No. of cores in element×Cross
section(mm²)

Core Diameter mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MLN-02Y(ST)CH-1×2×0.35

1×2×0.35

2.75

10.3

110
