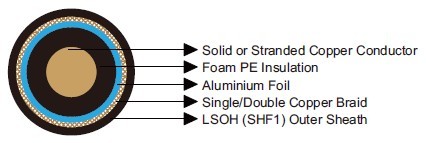

RG Series Coaxial Cables 50 Ω/75 Ω |
|
|
RG 178 |
RG 58 |
RG 174 |
RG 213 |
RG 214 |
RG 59 |
RG 223 |
RG 6 |
RG 11 |
Capacitance |
pF/m |
100 |
100 |
100 |
100 |
100 |
67 |
100 |
52 |
53 |
Impedance @200MHz |
Ω |
50 ± 2 |
50 ± 2 |
50 ± 2 |
50 ± 2 |
50 ± 2 |
75 ± 3 |
50 ± 2 |
75 ± 3 |
75 ± 3 |
Attenuation @50MHz |
dB/100m |
38 |
13 |
21 |
3 |
5 |
10 |
15 |
4.6 |
2.8 |
Attenuation @100MHz |
dB/100m |
52 |
21 |
32 |
7 |
8 |
14 |
21 |
6.4 |
4.1 |
Attenuation @200MHz |
dB/100m |
74 |
34 |
46 |
13 |
13 |
20 |
30 |
9.0 |
5.9 |
Attenuation @400MHz |
dB/100m |
108 |
55 |
82 |
15 |
22 |
29 |
39 |
12.8 |
8.5 |
Attenuation @1000MHz |
dB/100m |
170 |
91 |
147 |
29 |
39 |
52 |
68 |
20.8 |
14.3 |
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 10×OD
Temperature Range: -30℃ ~ +60℃
Dimensions and Weight
50 Ω
Part No. |
Cable Type |
Conductor |
Conductor Diameter mm |
Dielectric Diameter mm |
Nominal Overall |
Nominal Weight kg/km |
MLN-RG58C |
RG 58 CU |
19×0.18 TC |
0.90 |
3.0 |
4.95 |
40 |
MLN-RG174A |
RG 174 AU |
7×0.16 BCW |
0.48 |
1.55 |
2.8 |
10 |
MLN-RG213U |
RG 213 U |
7×0.75 BC |
2.25 |
7.3 |
10.3 |
157 |
MLN-RG214U |
RG 214 U |
7×0.75 SC |
2.25 |
7.3 |
10.8 |
195 |
MLN-RG178U |
RG 178 U |
7×0.10 SPCCS |
0.30 |
0.9 |
1.8 |
7 |
MLN-RG223U |
RG 223 U |
1×0.90 SC |
0.90 |
3.02 |
5.38 |
55 |
75 Ω
Part No. |
Cable Type |
Conductor |
Conductor Diameter mm |
Dielectric Diameter mm |
Nominal Overall |
Nominal Weight kg/km |
MLN-RG6 |
RG 6 |
1 x 1.0 BC |
1.0 |
4.5 |
7.1 |
80 |
MLN-RG59 |
RG 59 |
1 x 0.57 BCW |
0.57 |
3.75 |
6.15 |
53 |
MLN-RG11 |
RG 11 |
1 x 1.6 BC |
1.6 |
7.2 |
10.3 |
135 |
