   Secondary Circuit Cable 450/750V to ADP Specification



Applications

These cables are used for connection between transformers and Airfield Lighting Equipment.

Standards

ADP (Aéroport de Paris) specification

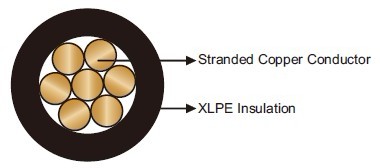

Construction

Conductor: Stranded bare copper.
Insulation: XLPE.

Technical Data

Rated Voltage Uo/U (Um)	450/750V
Maximum Conductor Temperature	90℃
Short Circuit Temperature	250℃
Operating Temperatures	-20℃~+70℃
Minimum Bending Radius	5×OD
Impacted Resistant	Yes
Weather Resistant	Yes

Dimensions and Weight

Construction	Nominal Insulation Thickness	Minimum Overall Diameter	Maximum Overall Diameter	Nominal Weight
No. ×mm²	mm	mm	mm	kg/km
1×4	0.7	3.5	4.5	42
