Automotive Cable

AVS

Application

Type AVS Automotive PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.

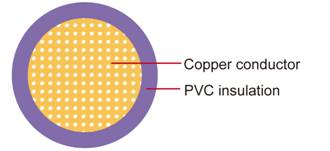

Construction:

AVS cables

Conductor:

Cu-ETP1 bare according to D 609-90

Insulation:

PVC

Standard Compliance:

JASO D 611-94

Technical Parameters:

Operating temperature:–40 °C to +85 °C

Intermittent temperature:120°C (120h)

  Conductor Insulation Cable
Nominal
Cross-
section
No. and Dia. of Wires. Diameter Max. Electrical resistance at 20℃ Max. thickness wall Nom. Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm Kg/km
1 x0.3 7/0.26 0.80 50.20 0.50 1.80 1.9 6
1 x0.5 7/0.32 1.00 32.70 0.60 2.10 2.40 7
1 x0.85 11/0.32 1.20 20.80 0.60 2.30 2.60 10
1 x1.25 16/0.32 1.50 14.30 0.60 2.60 2.90 15
1 x2 26/0.32 1.90 8.81 0.60 3.00 3.40 22
1 x3 41/0.32 2.40 5.59 0.70 3.50 3.90 42
1 x5 65/0.32 3.00 3.52 0.80 4.50 4.90 61
1 x0.3f 15/0.18 0.80 48.90 0.50 1.80 1.90 6
1 x0.5f 20/0.18 1.00 36.70 0.50 2.00 2.10 8
1 x0.75f 30/0.18 1.20 24.40 0.50 2.20 2.30 11
1 x1.25f 50/0.18 1.50 14.70 0.50 2.50 2.60 17
1 x2f 37/0.26 1.80 9.50 0.50 2.90 3.10 24

The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.

Note: Other configurations, sizes, colors and length not specified herein areavailable upon request.
