Automotive Cable

AVSSX/AESSX

Application

AVSSX/AESSX automotive cables XLPVC (XLPE) insulated single-core cable is used in electric system for automobile.

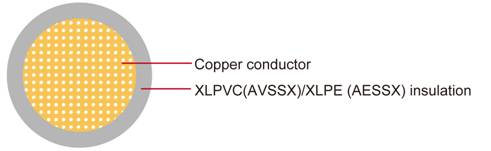

Construction:

AVSSX/AESSX

Conductor: Cu-ETP1 bare or tinned according to JIS C3102,

Insulation: XLPVC (AVSSX) XLPE (AESSX)

Standard Compliance:JASO D 608-92

Technical Parameters:

Operating temperature:–40 °C to +105 °C (AVSSX)

Operating temperature:–40 °C to +120 °C (AESSX)

AVSSX
  Conductor Insulation Cable
Nominal
cross-
section
No. and Dia. of Wires. Diameter Max. Electrical resistance at 20℃ Max. thickness wall Nom. Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm Mm mm Kg/km
1 x0.30 7/0.26 0.80 50.20 0.24 1.40 1.50 5
1 x0.50 7/0.32 1.00 32.70 0.24 1.60 1.70 7
1 x0.85 19/0.24 1.20 21.70 0.24 1.80 1.90 10
1 x0.85 7/0.40 1.10 20.80 0.24 1.80 1.90 10
1 x1.25 19/0.29 1.50 14.90 0.24 2.10 2.20 15
1 x2.00 19/0.37 1.90 9.00 0.32 2.70 2.80 23
1 x0.3f 19/0.16 0.80 48.80 0.24 1.40 1.50 2
1 x0.5f 19/0.19 1.00 34.60 0.30 1.60 1.70 7
1 x0.75f 19/0.23 1.20 23.60 0.30 1.80 1.90 10
1 x1.25f 37/0.21 1.50 14.60 0.30 2.10 2.20 14
1 x2f 37/0.26 1.80 9.50 0.40 2.60 2.70 22
AESSX
1 x0.3f 19/0.16 0.80 48.80 0.30 1.40 1.50 5
1 x0.5f 19/0.19 1.00 64.60 0.30 1.60 1.70 7
1 x0.75f 19/0.23 1.20 23.60 0.30 1.80 1.90 10
1 x1.25f 37/0.21 1.50 14.60 0.30 2.10 2.20 14
1 x2f 37/0.26 1.80 9.50 0.40 2.60 2.70 22

The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.

Note: Other configurations, sizes, colors and length not specified herein are available upon request
