Automotive Cable

Germany Standard

FL6Y2G

Application

Automotive EVAinsulated ,PURsheathed multi-cores cable is used for ABS braking systems, wiring inside the engine compartment.

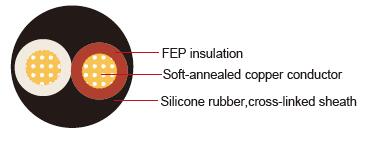

Construction:

FL4G11Y

Conductor:

Cu-ETP1 or bare according to DIN EN 13602

Insulation:

Fluorinated ethylene propylene(FEP) insulation

Sheath:

Siliconne rubber,cross-linked according to ISO 14572 class F

Standard:

ISO 6722 Class F

Technical Parameters:

Operating temperature: –40°C to +210°C

Conductor

Insulation

Cable

Nominal cross- section No. and Dia. of Wires Diameter max. Electrical
resistance at 20°C max.
Thickness Wall nom. Sheath Thickness Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm (mm) mΩ/m (mm) (mm) mm mm kg/km
2x0.35 12/0.21 0.8 52 0.4 0.53 4.6 5 32
2x0.25 24/0.16 0.7 86.5 0.4 0.53 3.4 3.8 24

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
