Automotive Cable

Germany Standard

FLR2X11Y

Application

Automotive XLPEinsulated, PURsheathed multi-cores cable is used for ABS systems. it has good bending strength properties.

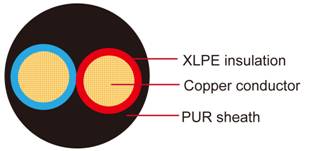

Construction:

FLR2X11Y

Conductor:

Cu-ETP1 bare or tinned according to DIN EN 13602

Insulation:

XLPE(Crosslinked polyethylene)

Sheath:

PUR(Polyether polyurethane)

Standard Compliance:

ISO 6722 Calss C

Technical Parameters:

Operating temperature:–40 °C to +125 °C

  Conductor Insulation Cable
Nominal
cross-
section
No. and Dia. of Wires Diameter Max. Electrical resistance at 20℃ Bare/tinned Max. thickness wall Nom. Diameter of core Sheath thickness Overall Diameter (min.) Overall Diameter (max.) Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm Kg/km
2 x0.35 12/0.21 0.90 52.00/54.50 0.25 1.35 0.50 3.50 3.90 18
2 x0.50 19/0.19 1.00 37.10/40.10 0.30 1.50 0.65 4.20 4.60 25
2 x0.50 64/0.10 1.00 38.20/40.10 0.35 1.60 0.95 5.00 5.40 36
2 x0.75 42/0.16 1.20 24.70/27.10 0.50 2.20 0.90 6.00 6.40 46

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
