Automotive Cable

Germany Standard

Single-core cable

FLR5Y-A

Application

This PTFE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

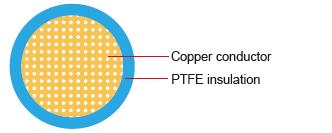

Construction:

Conductor: Cu-ETP1 bare according to DIN EN 13602

Insulation: PTFE

Standard: ISO 6722 Class H

Special properties:

Excellent resistance to chemicals
Due to its high temperature resistance,an equivalent alternative to PTFE

Technical Parameters:

Operating temperature: –90°C to +260°C

Conductor Construction

Insulation

Cable

Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical
resistance at 20°C
max.
Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x 0.22 7/0.21 0.7 87.9 0.20 1.1 1.2 3
1x 0.35 7/0.27 0.8 56.8 0.20 1.25 1.35 5
1x 0. 5 19/0.19 1.0 38.6 0.22 1.4 1.6 6
1x 0. 75 19/0.24 1.2 25.7 0.24 1.7 1.9 10
1x1 19/0.27 1.35 19.3 0.24 1.75 1.95 11
1x 1.5 19/0.33 1.7 13.2 0.24 2.1 2.3 17
1x 2.5 19/0.41 2.2 7.92 0.28 2.5 2.8 25

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
