Single Compression A2F Type Weatherproof, Waterproof, Flameproof & Increased Safety Cable Glands for Non Armoured Cables ( Gas Group I, IIA, IIB IIC)



Standard

EN 50014: 1998; EN 50018: 2000; EN 50019: 2000; EN 50281-1-1: 1998

Application

Suitable for all types of unarmoured plastic or rubber sheathed cables in indoor as well as outdoor installations. It is used in applications where it is essential to provide an IP66/IP67 and explosion proof seal on the outer sheath of the cable. It is particularly suitable for Zone1 & Zone2 in hazardous area.

Feature

Single compression for cable sheath

Fire and Ingress Protection

II2 GD Exd IIC / Exe II / ExtD A21 / IP66 / IP67 Allowable temperature on the elastomeric sealing ring: 100℃ (ATEX), 120℃(GOST R)

Permitted Zone and Gas Group

Suitable for use in Zone1, Zone2, and Gas Groups, IIA, IIB and IIC.

Certificate

IECEX KOSHA (IECEX KOS 09, 0017X), ATEX NEMKO (03ATEXI460X), KIMM(EX08FLPI96) GOSTR

Material

Brass / Stainless Steel

Plating Option

Brass Finish, Nickel Finish, Chrome Finish or as specified

Accessories

Lock Nut, Sealing Washer, Earth Tag, Shroud, Serrated Washer, Stopping Plug, Reducer, Adaptor

Ordering Code

(Gland Type / Size & Entry Thread Size) e.g. A2F 32a / M32 -18mm

Technical Data

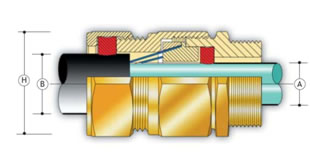

Part No. Entry Thread Size Cable Diameter. Thread Length. Entry Hole Size Hexagon Dimensions (H) Weight Length
Metric NPT "B" Metric NPT Metric NPT
A2F-16a M16/M20 1/2" 3 -7.5 15 15 17 22 H24X26 100 31
A2F -16b M16/M20 1/2" 6.1 -10 15 15 17 22 H24X26 100 31
A2F -20a M20 1/2"or 3/4 10.1 -13 15 15or16 21 22 H27X29 230 33
A2F-20b M20 1/2"or 3/4 13.1 -15 15 15or16 21 22 H27X29 230 33
A2F-25a M25 3/4" or 1" 14-17.5 15 16or18 26 26 H32X34 320 34
A2F-25b M25 3/4" or 1" 16.1-19.5 15 16or18 26 26 H32X34 320 34
A2F-32a M32 1"or1-1/4" 18.1 -22 15 18or19 33 34 H39X41.5 370 38
A2F-32b M32 1"or1-1/4" 21 -26 15 18or19 33 34 H39X41.5 370 38
A2F-40a M40 1-1/4" or 1-1/2" 24-28 15 19 or21 41 43 H48X51 550 40
A2F-40b M40 1-1/4" or 1-1/2" 27-32 15 19 or21 41 43 H48X51 550 40
A2F-50a M50 1-1/2" or2" 32.1 -34 15 21or24 51 50 H58X62 690 42
A2F-50b M50 1-1/2" or2" 34.1 -40 15 21or24 51 50 H58X62 690 42
A2F-63a M63 2" or2-1/2" 38-44 15 24or27 64 62 H73X78 1110 46
A2F-63b M63 2" or2-1/2" 43-50 15 24or27 64 62 H73X78 1110 46
A2F-63c M63 2" or2-1/2" 49-54 15 24or27 64 62 H73X78 1110 46
A2F-75a M75 2-1/2"or 3" 52-56 20 27 or30 76 74 H85X90 1500 52
A2F-75b M75 2-1/2"or 3" 55-60 20 27 or30 76 74 H85X90 1500 52
A2F-75c M75 2-1/2"or 3" 59-62 20 27 or30 76 74 H85X90 1500 52
A2F-75d M75 2-1/2"or 3" 62.1-66 20 27 or30 76 74 H85X90 1500 52
A2F-90a M90 3" or 3-1/2" 68-70 20 30or32 91 90 H103X 113 2000 60
A2F-90b M90 3" or 3-1/2" 68-76 20 30or32 91 90 H103X 113 2000 60
A2F-100a M100 3-1/2" or4" 76.1-81 20 32 101 102 H112X 120 2500 69
A2F-100b M100 3-1/2" or4" 81.1-85 20 32 101 102 H112X 120 2500 69
