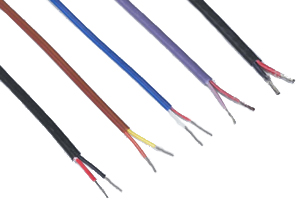

PFA Insulated Thermocouple Wire and Extension Wire
Product application:
PFA Thermocouple Wire may be used for general use extension wire.
Product characteristic:
Construction:
Solid or stranded thermocouple wire
Flame retardant extruded fluoropolymer PFA insulation
Parallel conductors
Flame retardant extruded fluoropolymer PFA jacket
Tinned Copper
Technical:
Continuous temperature rating:260°C
Minimum Bend Radius: insulation 3 x cable Ø
overall 5 x cable Ø
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS
Properties:
Excellent abrasion, oil, chemical and moisture resistance.
Service temperature of 260°C
Low friction factor when pulled.
Product specification
PFA-Insulated Type J Thermocouple Wire
Iron/Constantan PFA Thermocouple Wire 260°C

High Temperature Cables

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type J Thermocouple Wire - Extension Grade
Iron/Constantan PFA Thermocouple Wire 260°C - Extension Grade

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type K Thermocouple Wire
Chromel/Alumel PFA Thermocouple Wire260°C

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type K Thermocouple Wire - Extension Grade
Chromel/Alumel PFA Thermocouple Wire 260°C - Extension Grade

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type T Thermocouple Wire
Copper/Constantan PFA Thermocouple Wire 260°C

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type T Thermocouple Wire - Extension Grade
Copper/Constantan PFA Thermocouple Wire 260°C - Extension Grade

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type E Thermocouple Wire
Chromel/Constantan PFA Thermocouple Wire 260°C

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type E Thermocouple Wire - Extension Grade
Chromel/Constantan PFA Thermocouple Wire 260°C - Extension Grade

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type N Thermocouple Wire
Nicrosil/Nisil PFA Thermocouple Wire 260°C

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type N Thermocouple Wire - Extension Grade
Nicrosil/Nisil PFA Thermocouple Wire 260°C - Extension Grade

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5
