High Temperature Cables

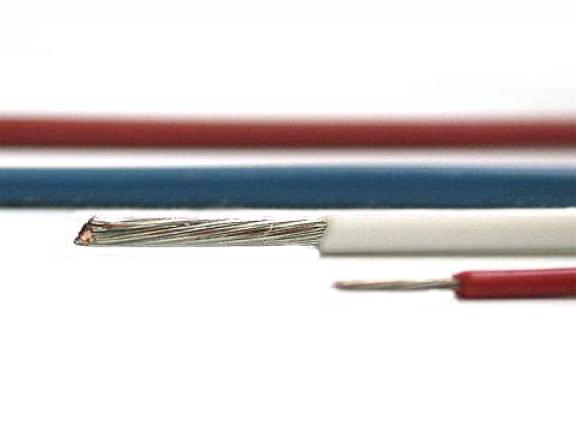

TFE Insulated Thermocouple Wire and Extension Wire
Product application:
TFE Thermocouple Wire may be used for aircraft and petroleum processing
Product characteristic:
Construction:
Solid or stranded thermocouple wire
Fused TFE tape insulation
Parallel conductors
Flame retardant extruded fluoropolymer TFE jacket
Technical:
Continuous temperature rating:260°C
Minimum Bend Radius: insulation 3 x cable Ø
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS
Properties:
Excellent abrasion, chemical and moisture resistance.
Service temperature of 260°C
Low friction factor when pulled
Flame retardant; non-propagating in fire conditions
Product specification:
TFE Insulated Type J Thermocouple Wire
Iron/Constantan TFE Thermocouple Wire 260°C
AWG |
Nominal Conductor Diameter |
Nominal Thickness mm |
Gross |
||
Insulation |
Jacket |
O.D. |
|||
26 |
0.406 |
0.152 |
0.203 |
1.12*1.83 |
6 |
24 |
0.508 |
0.152 |
0.203 |
1.19*1.95 |
7.5 |
24S*(7/32) |
0.61 |
0.152 |
0.203 |
1.24*2.13 |
8.9 |
20 |
0.813 |
0.152 |
0.203 |
1.55*2.69 |
16.4 |
20S*(7/28) |
0.965 |
0.152 |
0.203 |
1.63*2.84 |
17.9 |
18 |
1.02 |
0.152 |
0.203 |
1.73*3.05 |
23.8 |
18S*(7/26) |
1.22 |
0.152 |
0.203 |
1.93*3.45 |
26.8 |
16 |
1.29 |
0.254 |
0.203 |
2.21*4.01 |
37.3 |
16S*(7/24) |
1.52 |
0.254 |
0.203 |
2.44*4.47 |
40.2 |
TFE Insulated Extension Grade Type JX Thermocouple Wire
Iron/Constantan TFE Thermocouple Wire 260°C - Extension Grade
AWG |
Nominal Conductor Diameter |
Nominal Thickness mm |
Gross |
||
Insulation |
Jacket |
O.D. |
|||
26 |
0.406 |
0.152 |
0.203 |
1.12*1.83 |
6 |
24 |
0.508 |
0.152 |
0.203 |
1.19*1.95 |
7.5 |
24S*(7/32) |
0.61 |
0.152 |
0.203 |
1.24*2.13 |
8.9 |
20 |
0.813 |
0.152 |
0.203 |
1.55*2.69 |
16.4 |
20S*(7/28) |
0.965 |
0.152 |
0.203 |
1.63*2.84 |
17.9 |
18 |
1.02 |
0.152 |
0.203 |
1.73*3.05 |
23.8 |
18S*(7/26) |
1.22 |
0.152 |
0.203 |
1.93*3.45 |
26.8 |
16 |
1.29 |
0.254 |
0.203 |
2.21*4.01 |
37.3 |
16S*(7/24) |
1.52 |
0.254 |
0.203 |
2.44*4.47 |
40.2 |
TFE Insulated Type K Thermocouple Wire
Chromel/Alumel TFE Thermocouple Wire 260°C
AWG |
Nominal Conductor Diameter |
Nominal Thickness mm |
Gross |
||
Insulation |
Jacket |
O.D. |
|||
26 |
0.406 |
0.152 |
0.203 |
1.12*1.83 |
6 |
24 |
0.508 |
0.152 |
0.203 |
1.19*1.95 |
7.5 |
24S*(7/32) |
0.61 |
0.152 |
0.203 |
1.24*2.13 |
8.9 |
20 |
0.813 |
0.152 |
0.203 |
1.55*2.69 |
16.4 |
20S*(7/28) |
0.965 |
0.152 |
0.203 |
1.63*2.84 |
17.9 |
18 |
1.02 |
0.152 |
0.203 |
1.73*3.05 |
23.8 |
18S*(7/26) |
1.22 |
0.152 |
0.203 |
1.93*3.45 |
26.8 |
16 |
1.29 |
0.254 |
0.203 |
2.21*4.01 |
37.3 |
16S*(7/24) |
1.52 |
0.254 |
0.203 |
2.44*4.47 |
40.2 |
TFE Insulated Extension Grade Type KX Thermocouple Wire
Chromel/Alumel TFE Thermocouple Wire 260°C - Extension Grade
AWG |
Nominal Conductor Diameter |
Nominal Thickness mm |
Gross |
||
Insulation |
Jacket |
O.D. |
|||
26 |
0.406 |
0.152 |
0.203 |
1.12*1.83 |
6 |
24 |
0.508 |
0.152 |
0.203 |
1.19*1.95 |
7.5 |
24S*(7/32) |
0.61 |
0.152 |
0.203 |
1.24*2.13 |
8.9 |
20 |
0.813 |
0.152 |
0.203 |
1.55*2.69 |
16.4 |
20S*(7/28) |
0.965 |
0.152 |
0.203 |
1.63*2.84 |
17.9 |
18 |
1.02 |
0.152 |
0.203 |
1.73*3.05 |
23.8 |
18S*(7/26) |
1.22 |
0.152 |
0.203 |
1.93*3.45 |
26.8 |
16 |
1.29 |
0.254 |
0.203 |
2.21*4.01 |
37.3 |
16S*(7/24) |
1.52 |
0.254 |
0.203 |
2.44*4.47 |
40.2 |
TFE Insulated Type T Thermocouple Wire
Copper/Constantan TFE Thermocouple Wire 260°C
AWG |
Nominal Conductor Diameter |
Nominal Thickness mm |
Gross |
||
Insulation |
Jacket |
O.D. |
|||
26 |
0.406 |
0.152 |
0.203 |
1.12*1.83 |
6 |
24 |
0.508 |
0.152 |
0.203 |
1.19*1.95 |
7.5 |
24S*(7/32) |
0.61 |
0.152 |
0.203 |
1.24*2.13 |
8.9 |
20 |
0.813 |
0.152 |
0.203 |
1.55*2.69 |
16.4 |
20S*(7/28) |
0.965 |
0.152 |
0.203 |
1.63*2.84 |
17.9 |
18 |
1.02 |
0.152 |
0.203 |
1.73*3.05 |
23.8 |
18S*(7/26) |
1.22 |
0.152 |
0.203 |
1.93*3.45 |
26.8 |
16 |
1.29 |
0.254 |
0.203 |
2.21*4.01 |
37.3 |
16S*(7/24) |
1.52 |
0.254 |
0.203 |
2.44*4.47 |
40.2 |
TFE Insulated Extension Grade Type TX Thermocouple Wire
Copper/Constantan TFE Thermocouple Wire 260°C - Extension Grade
AWG |
Nominal Conductor Diameter |
Nominal Thickness mm |
Gross |
||
Insulation |
Jacket |
O.D. |
|||
26 |
0.406 |
0.152 |
0.203 |
1.12*1.83 |
6 |
24 |
0.508 |
0.152 |
0.203 |
1.19*1.95 |
7.5 |
24S*(7/32) |
0.61 |
0.152 |
0.203 |
1.24*2.13 |
8.9 |
20 |
0.813 |
0.152 |
0.203 |
1.55*2.69 |
16.4 |
20S*(7/28) |
0.965 |
0.152 |
0.203 |
1.63*2.84 |
17.9 |
18 |
1.02 |
0.152 |
0.203 |
1.73*3.05 |
23.8 |
18S*(7/26) |
1.22 |
0.152 |
0.203 |
1.93*3.45 |
26.8 |
16 |
1.29 |
0.254 |
0.203 |
2.21*4.01 |
37.3 |
16S*(7/24) |
1.52 |
0.254 |
0.203 |
2.44*4.47 |
40.2 |
TFE Insulated Type E Thermocouple Wire
Chromel/Constantan TFE Thermocouple Wire 260°C
AWG |
Nominal Conductor Diameter |
Nominal Thickness mm |
Gross |
||
Insulation |
Jacket |
O.D. |
|||
26 |
0.406 |
0.152 |
0.203 |
1.12*1.83 |
6 |
24 |
0.508 |
0.152 |
0.203 |
1.19*1.95 |
7.5 |
24S*(7/32) |
0.61 |
0.152 |
0.203 |
1.24*2.13 |
8.9 |
20 |
0.813 |
0.152 |
0.203 |
1.55*2.69 |
16.4 |
20S*(7/28) |
0.965 |
0.152 |
0.203 |
1.63*2.84 |
17.9 |
18 |
1.02 |
0.152 |
0.203 |
1.73*3.05 |
23.8 |
18S*(7/26) |
1.22 |
0.152 |
0.203 |
1.93*3.45 |
26.8 |
16 |
1.29 |
0.254 |
0.203 |
2.21*4.01 |
37.3 |
16S*(7/24) |
1.52 |
0.254 |
0.203 |
2.44*4.47 |
40.2 |
TFE Insulated Extension Grade Type EX Thermocouple Wire
Chromel/Constantan TFE Thermocouple Wire 260°C - Extension Grade
AWG |
Nominal Conductor Diameter |
Nominal Thickness mm |
Gross |
||
Insulation |
Jacket |
O.D. |
|||
26 |
0.406 |
0.152 |
0.203 |
1.12*1.83 |
6 |
24 |
0.508 |
0.152 |
0.203 |
1.19*1.95 |
7.5 |
24S*(7/32) |
0.61 |
0.152 |
0.203 |
1.24*2.13 |
8.9 |
20 |
0.813 |
0.152 |
0.203 |
1.55*2.69 |
16.4 |
20S*(7/28) |
0.965 |
0.152 |
0.203 |
1.63*2.84 |
17.9 |
18 |
1.02 |
0.152 |
0.203 |
1.73*3.05 |
23.8 |
18S*(7/26) |
1.22 |
0.152 |
0.203 |
1.93*3.45 |
26.8 |
16 |
1.29 |
0.254 |
0.203 |
2.21*4.01 |
37.3 |
16S*(7/24) |
1.52 |
0.254 |
0.203 |
2.44*4.47 |
40.2 |
TFE Insulated Type N Thermocouple Wire
Nicrosil/Nisil TFE Thermocouple Wire 260°C
AWG |
Nominal Conductor Diameter |
Nominal Thickness mm |
Gross |
||
Insulation |
Jacket |
O.D. |
|||
26 |
0.406 |
0.152 |
0.203 |
1.12*1.83 |
6 |
24 |
0.508 |
0.152 |
0.203 |
1.19*1.95 |
7.5 |
24S*(7/32) |
0.61 |
0.152 |
0.203 |
1.24*2.13 |
8.9 |
20 |
0.813 |
0.152 |
0.203 |
1.55*2.69 |
16.4 |
20S*(7/28) |
0.965 |
0.152 |
0.203 |
1.63*2.84 |
17.9 |
18 |
1.02 |
0.152 |
0.203 |
1.73*3.05 |
23.8 |
18S*(7/26) |
1.22 |
0.152 |
0.203 |
1.93*3.45 |
26.8 |
16 |
1.29 |
0.254 |
0.203 |
2.21*4.01 |
37.3 |
16S*(7/24) |
1.52 |
0.254 |
0.203 |
2.44*4.47 |
40.2 |
TFE Insulated Extension Grade Type NX Thermocouple Wire
Nicrosil/Nisil TFE Thermocouple Wire 260°C - Extension Grade
AWG |
Nominal Conductor Diameter |
Nominal Thickness mm |
Gross |
||
Insulation |
Jacket |
O.D. |
|||
26 |
0.406 |
0.152 |
0.203 |
1.12*1.83 |
6 |
24 |
0.508 |
0.152 |
0.203 |
1.19*1.95 |
7.5 |
24S*(7/32) |
0.61 |
0.152 |
0.203 |
1.24*2.13 |
8.9 |
20 |
0.813 |
0.152 |
0.203 |
1.55*2.69 |
16.4 |
20S*(7/28) |
0.965 |
0.152 |
0.203 |
1.63*2.84 |
17.9 |
18 |
1.02 |
0.152 |
0.203 |
1.73*3.05 |
23.8 |
18S*(7/26) |
1.22 |
0.152 |
0.203 |
1.93*3.45 |
26.8 |
16 |
1.29 |
0.254 |
0.203 |
2.21*4.01 |
37.3 |
16S*(7/24) |
1.52 |
0.254 |
0.203 |
2.44*4.47 |
40.2 |
