International Municipal Signal Association(IMSA Series)

IMSA 51-7(Loop Detector Cable)

Application and Description :

These cables are used in road pavements to detect vehicles for the purpose of changing signals or
determining amount of traffic flow.

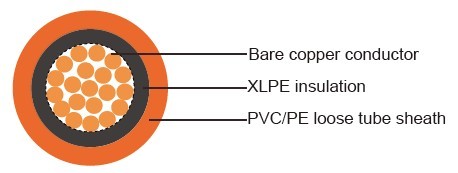

Cable Construction:

- Conductor: Stranded bare copper per ASTM B-8
- Insulation: Cross-linked polyethylene (XLPE)
- Sheatht: PE or PVC loose tube, black or orange

Temperature Rating:

60°C

Voltage Rating:

600 V

Cable Parameter :

AWG	No. of Conductor	Solid or Stranded	Insulation Thickness		Sheath thickness		Overall Diameter		Cable Weight
			inches	mm	inches	mm	inches	mm	Lbs./ Kft	Kg/Km
PE tube
14	1	19strand	0.030	0.76	0.030	0.76	0.19	4.83	26	39
12	1	19strand	0.030	0.76	0.030	0.76	0.22	5.59	31	46
PVC tube
14	1	19strand	0.030	0.76	0.030	0.76	0.19	4.83	31	46
12	1	19strand	0.030	0.76	0.030	0.76	0.22	5.59	37	55
