Industrial Cables Multi-Core Flexible Cables
209Y to BS 6500
Application and Description
209Y to BS 6500 cables are suitable for domestic premises, kitchen, office for light service or light portable
apparatuses. With their special insulation and sheath compounds, 209Y to BS 6500 cables are adapted for
apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system
apparatuses) without contact with warm parts and radiations. 209Y is equivalent to harmonized code
H03V2V2-F.

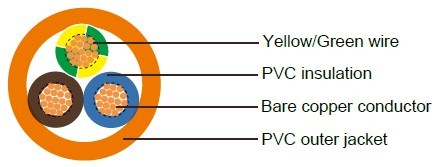

Cable Construction
Bare copper fine wire conductor
Stranding to BS 6360 Class 5 or IEC 60228 Class 5
PVC core insulation TI3
PVC outer jacket TM3
Core Identification
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 cores: Green/Yellow, Black, Brown, Blue
5 Cores: Green/Yellow, Brown, Black, Grey, Blue
Technical Characteristics
Working voltage: 300/300 volts
Test voltage: 3000 volts
Flexing bending radius: 4xOverall diameter
Static bending radius: 3xOverall diameter
Flexing temperature: +5º C to +90º C
Static temperature: -40º C to +90º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩxkm
Cable Parameter
| AWG (No of Strands/ Strand Diameter) | No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/km | Nominal Weight kg/km |
| 2092Y | ||||||
| 20(16/32) | 2x0.50 | 0.5 | 0.6 | 5 | 9.6 | 38 |
| 18(24/32) | 2x0.75 | 0.5 | 0.6 | 5.5 | 14.4 | 46 |
| 2093Y | ||||||
| 20(16/32) | 3x0.50 | 0.5 | 0.6 | 5.4 | 14.4 | 45 |
| 18(24/32) | 3x0.75 | 0.5 | 0.6 | 6 | 21.6 | 59 |
| 2094Y | ||||||
| 20(16/32) | 4x0.50 | 0.5 | 0.6 | 5.8 | 19.2 | 55 |
| 18(24/32) | 4x0.75 | 0.5 | 0.6 | 6.5 | 28.8 | 72 |
