Industrial Cables Multi-Core Flexible Cables
318TRS to BS 6500
Application and Description
318TRS to BS 6500 cables are suitable for use with electronics and electrical equipment such as appliances, small
hand tools and office equipment, where the cables may be subject to light and medium stresses in
both dry and damp environments. They can be used in flat irons, soldering irons, kitchen aids, toasters,
stoves in connections with light commercial electric tools. 318TRS to BS 6500 cables are also suitable for fixed installation in
furniture, decorative coverings, wall partitions and pre-fabricated building parts. 318TRS is equivalent
to harmonized code H05RR-F.

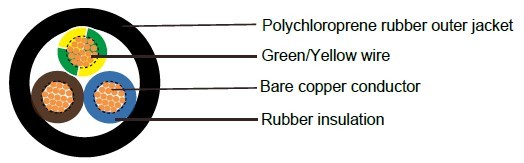

Cable Construction
Fine bare copper strands
Stranding to BS 6360 Class 5 or IEC 60228 Class 5
Rubber core insulation EI4 to VDE-0282 Part-1
Green/Yellow grounding, 3 conductors and above
Polychloroprene rubber (neoprene) jacket EM3
Core Identification
2 Cores: Brown, Blue
3 Cores: Brown, Blue and Green/Yellow
4 Cores: Brown, Grey, Black and Green/Yellow
5 Cores: Brown, Blue, Grey, Black and Green/Yellow
Technical Characteristics
Working voltage: 300/500 volts
Test voltage: 2000 volts
Flexing bending radius: 8xOverall diameter
Fixed bending radius: 6xOverall diameter
Temperature range: -30º C to +60º C
Short circuit temperature: +200 º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩxkm
Cable Parameter
| AWG (No of Strands/ Strand Diameter) | No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter min-max mm |
Nominal Copper Weight kg/km | Nominal Weight kg/km |
| 3182TRS | ||||||
| 18(24/32) | 2x0.75 | 0.6 | 0.8 | 5.7-7.4 | 14.4 | 61 |
| 17(32/32) | 2x1 | 0.6 | 0.9 | 6.1-8.0 | 19.0 | 73 |
| 16(30/30) | 2x1.5 | 0.8 | 1.0 | 7.6-9.8 | 29.0 | 115 |
| 14(50/30) | 2x2.5 | 0.9 | 1.1 | 9.0-11.6 | 48.0 | 160 |
| 3183TRS | ||||||
| 18(24/32) | 3x0.75 | 0.6 | 0.9 | 6.2-8.1 | 21.6 | 75 |
| 17(32/32) | 3x1 | 0.6 | 0.9 | 6.5-8.5 | 29.0 | 86 |
| 16(30/30) | 3x1.5 | 0.8 | 1.0 | 8.0-10.4 | 43.0 | 135 |
| 14(50/30) | 3x2.5 | 0.9 | 1.1 | 9.6-12.4 | 72.0 | 191 |
| 3184TRS | ||||||
| 18(24/32) | 4x0.75 | 0.6 | 0.9 | 6.8-8.8 | 28.8 | 94 |
| 17(32/32) | 4x1 | 0.6 | 0.9 | 7.1-9.3 | 38.4 | 105 |
| 16(30/30) | 4x1.5 | 0.8 | 1.1 | 9.0-11.6 | 58.0 | 165 |
| 14(50/30) | 4x2.5 | 0.9 | 1.2 | 10.7-13.8 | 96 | 235 |
| 3185TRS | ||||||
| 18(24/32) | 5x0.75 | 0.6 | 1.0 | 7.6-9.9 | 36 | 110 |
| 17(32/32) | 5x1 | 0.6 | 1.0 | 8.0-10.3 | 48.0 | 130 |
| 16(30/30) | 5x1.5 | 0.8 | 1.1 | 9.8-12.7 | 72.0 | 190 |
| 14(50/30) | 5x2.5 | 0.9 | 1.3 | 11.9-15.3 | 120 | 285 |
