Industrial Cables Single Core Fixed Wiring Cable
6181Y/6181X to BS 6004 and 6346
Application and Description
6181Y/6181X to BS 6004 and 6346 cables are designed for surface wiring where there is little risk of mechanical damage and are
suitable for use in electrical installations such as power and lighting.

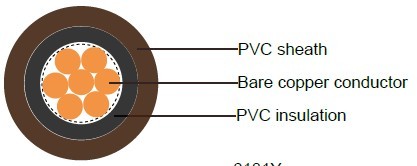

Cable Construction
Bare copper conductor
Solid to BS 6360 class 1 or IEC 60228 class 1; stranding to BS 6360 class 2 or IEC 60228 class 2
1.0mm²2.5mm Class 1 – circular solid
4mm² and above Class 2 – stranded circular or circular compacted
PVC insulation Type TI1 to BS7655 or XLPE(6181X)
PVC sheath Type TM1 or Type 6 to BS7655
Core Identification
Black, Blue, Brown
Technical Characteristics
Working voltage: 1.0mm² to 35mm² 300/500V to BS 6004
50mm² and above 600/1000V to BS 6346
Minimum bending radius: up to 35 mm² : 3xoverall diameter,
50mm² to 185mm²above: 4xoverall diameter
240mm² and above: 6xoverall diameter
Operating temperature: -15º C to +70º C
Insulation resistance: 10 MΩxkm
Flame retardant: IEC 60332.1
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 18 | 1x1 | 0.6 | 0.8 | 4.5 | 27 |
| 16 | 1x1.5 | 0.7 | 0.8 | 4.9 | 36 |
| 14 | 1x2.5 | 0.8 | 0.8 | 5.8 | 52 |
| 12(7/20) | 1x4 | 0.9 | 0.9 | 6.8 | 76 |
| 10(7/18) | 1x6 | 0.8 | 0.9 | 7.4 | 100 |
| 8(7/16) | 1x10 | 1 | 0.9 | 8.8 | 160 |
| 6(7/14) | 1x16 | 1 | 1 | 10.5 | 230 |
| 4(7/12) | 1x25 | 1.2 | 1.1 | 12.5 | 340 |
| 2(7/10) | 1x35 | 1.2 | 1.1 | 13.5 | 440 |
| 1(19/13) | 1x50 | 1 | 1.4 | 13.7 | 541 |
| 2/0(19/11) | 1x70 | 1.1 | 1.4 | 15.8 | 749 |
| 3/0(19/10) | 1x95 | 1.1 | 1.5 | 17.5 | 1000 |
| 4/0(37/12) | 1x120 | 1.2 | 1.5 | 19.3 | 1241 |
| 300MCM(37/11) | 1x150 | 1.4 | 1.6 | 21.5 | 1523 |
| 350MCM(37/10) | 1x185 | 1.6 | 1.6 | 24.7 | 1942 |
| 500MCM(61/11) | 1x240 | 1.7 | 1.7 | 27.7 | 2514 |
| (61/10) | 1x300 | 1.8 | 1.8 | 30.6 | 3125 |
| (61/9) | 1x400 | 2 | 1.9 | 34.2 | 3967 |
| (61/8) | 1x500 | 2.2 | 2 | 38 | 5063 |
| (127/10) | 1x630 | 2.4 | 2.2 | 42.9 | 6491 |
