6192Y/ 6193Y to BS 6004
Application and Description
6192Y/ 6193Y to BS 6004 cables are suitable for fixed installation in dry or damp premises on walls, boards or trays,
in channels or embedded in plaster. 6192Y/ 6193Y to BS 6004 cables should be laid in conduit in conduit or trunking where
mechanical protection is required.

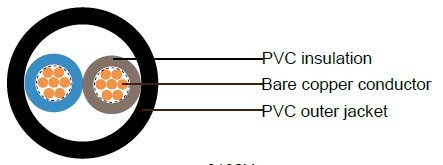

Cable Construction
Fine bare copper strands
Stranding to BS 6360, IEC 60228 Class 1 or 2
PVC insulation type TI1 to BS 7655
PVC sheath type T6 to BS 7655
Core Identification
2 cores: brown and blue
3 cores: brown, black and grey
Technical Characteristics
Working voltage: 300/500v
Test voltage: 2000 volts
Minimum bending radius: 4xOverall diameter
Operating temperature: -15º C to +70º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 10 MΩxkm
Cable Parameter
| AWG (No of Strands/ Strand Diameter) | No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal thickness of insulation mm |
Nominal thickness of sheath mm |
Nominal overall dimensions | Nominal Weight kg/km | |
| lower limit mm |
upper limit mm |
|||||
| 6192Y | ||||||
| 17 | 2 × 1.0 | 0.6 | 0.9 | 4x6.2 | 4.7x7.4 | 53 |
| 16 | 2 × 1.5 | 0.7 | 0.9 | 4.4x7.0 | 5.4x8.4 | 70 |
| 14 | 2 × 2.5 | 0.8 | 1 | 5.2x8.4 | 6.2x9.8 | 105 |
| 12(7/20) | 2 × 4 | 0.8 | 1 | 6x10.4 | 7.2x11.5 | 150 |
| 10(7/18) | 2 × 6 | 0.8 | 1.1 | 6.8x11.5 | 8.0x13.0 | 205 |
| 8(7/16) | 2 × 10 | 1 | 1.2 | 7.8x15.1 | 9.6x16 | 325 |
| 6(7/14) | 2 × 16 | 1 | 1.3 | 9.8x17.2 | 11.0x18.5 | 465 |
| 6193Y | ||||||
| 17 | 3 × 1.0 | 0.6 | 0.9 | 4x8.4 | 4.7x9.8 | 77 |
| 16 | 3 × 1.5 | 0.7 | 0.9 | 4.4x9.8 | 5.4x11.5 | 100 |
| 14 | 3 × 2.5 | 0.8 | 1 | 5.2x11.5 | 6.2x13.5 | 150 |
| 12(7/20) | 3 × 4 | 0.8 | 1.1 | 6x14.8 | 7.4x16.5 | 230 |
| 10(7/18) | 3 × 6 | 0.8 | 1.1 | 6.8x16.5 | 8.0x18.0 | 300 |
| 8(7/16) | 3 × 10 | 1 | 1.2 | 7.8x21.0 | 9.6x22.5 | 485 |
| 6(7/14) | 3 × 16 | 1 | 1.3 | 9.8x24.8 | 11.0x26.5 | 700 |
