Industrial Cables Multi-Core Flexible Cables
6241Y/6242Y/ 6243Y to BS 6004
Application and Description
6241Y/6242Y/ 6243Y to BS 6004 cables are suitable for fixed installation in dry or damp premises on walls, boards or trays,
in channels or embedded in plaster. They should be laid in conduit or trunking where mechanical
protection is required.
Cable Construction
Fine bare copper strands
Stranding to IEC 60228 Class 1 or 2
PVC insulation type TI1 to BS 7655
The core or cores shall be laid parallel with the uninsulated circuit protective conductor
For twin cores, the protective conductor centrally placed between cores in same plane
For 3 cores, the protective conductor centrally placed between black and grey cores in same plane
PVC sheath type T6 to BS 7655

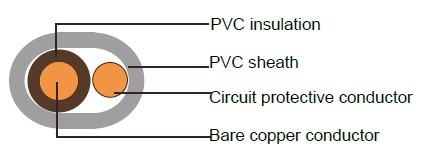

6241Y

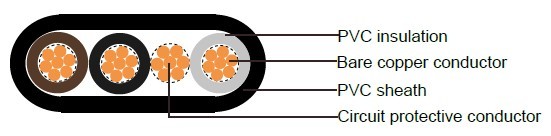

6242Y

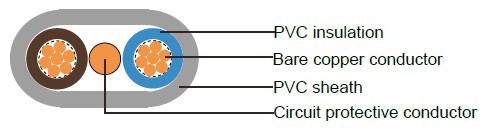

6243Y
Core Identification
2 cores: brown and blue, or, for 2 × 1.0 and 2 × 1.5 cables, brown and brown
3 cores: brown, black (centre core) and grey
Technical Characteristics
Working voltage: 300/500v
Test voltage: 2000 volts
Minimum bending radius: 4xOverall diameter
Flexing temperature: -15º C to +70º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 10 MΩxkm
Cable Parameter
| AWG (No of Strands/ Strand Diameter) | No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal thickness of insulation mm |
Nominal thickness of sheath mm |
Nominal overall dimensions | Circuit protective conductor AWG | Nominal Weight kg/km | |
| lower limit mm |
upper limit mm |
||||||
| 6241Y | |||||||
| 17 | 1 × 1.0 | 0.6 | 0.9 | 4x5.1 | 5.2x6.4 | 17 | 45 |
| 16 | 1 × 1.5 | 0.7 | 0.9 | 4.4x5.4 | 5.8x7.0 | 17 | 55 |
| 6242Y | |||||||
| 17 | 2 × 1.0 | 0.6 | 0.9 | 4 × 7.2 | 4.7 × 8.6 | 17 | 68 |
| 17(7/26) | 2 × 1.0 | 0.7 | 0.9 | 4.2 × 7.8 | 5.1 × 9.4 | 17 | 73 |
| 16 | 2 × 1.5 | 0.7 | 0.9 | 4.4x8.2 | 5.4x9.6 | 17 | 85 |
| 16(7/24) | 2 × 1.5 | 0.7 | 0.9 | 4.5x8.4 | 5.6x10 | 17 | 90 |
| 14 | 2 × 2.5 | 0.8 | 1 | 5.2x9.8 | 6.2x11.5 | 16 | 120 |
| 14(7/22) | 2 × 2.5 | 0.8 | 1 | 5.2x9.8 | 6.6x12.0 | 16 | 125 |
| 12(7/20) | 2 × 4 | 0.8 | 1 | 5.6x10.5 | 7.2x13.0 | 16 | 175 |
| 10(7/18) | 2 × 6 | 0.8 | 1.1 | 6.4x12.5 | 8.0x15.0 | 14 | 240 |
| 8(7/16) | 2 × 10 | 1 | 1.2 | 7.8x15.5 | 9.6x19.0 | 12(7/20) | 390 |
| 6(7/14) | 2 × 16 | 1 | 1.3 | 9.0x18.0 | 11.0x22.5 | 10(7/18) | 560 |
| 6243Y | |||||||
| 17 | 3 × 1.0 | 0.6 | 0.9 | 4x9.6 | 4.7x11.0 | 17 | 91 |
| 16 | 3 × 1.5 | 0.7 | 0.9 | 4.4x10.5 | 5.4x12.5 | 17 | 115 |
| 14 | 3 × 2.5 | 0.8 | 1 | 5.2x12.5 | 6.2x14.5 | 17 | 170 |
| 12(7/20) | 3 × 4 | 0.8 | 1.1 | 5.8x14.5 | 7.4x18.0 | 16 | 250 |
| 10(7/18) | 3 × 6 | 0.8 | 1.1 | 6.4x16.5 | 8.0x20.0 | 14 | 340 |
| 8(7/16) | 3 × 10 | 1 | 1.2 | 7.8x21.0 | 9.6x25.5 | 12(7/20) | 540 |
| 6(7/14) | 3 × 16 | 1 | 1.3 | 9.0x24.5 | 11.0x29.5 | 10(7/18) | 790 |
