Industrial Cables Single Core Fixed Wiring Cable

6381B to BS 7211

Application and Description

6381B to BS 7211 cables are suitable for D.C. power supplies on telecom equipment and power applications where flexibility is required. 6381B to BS 7211 cables produce no corrosive gases when burnt which is important where electronic equipment is installed.

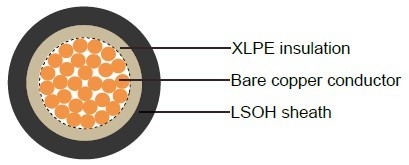

Cable Construction

Bare copper conductor
Stranding to BS6360 Class 5 or IEC60228 Class 5
XLPE(Cross-Linked Polyethylene) insulation
LSOH(Low Smoke Zero Halogen) sheath

Core Identification

Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order

Technical Characteristics

Working voltage: 600/1000V
Minimum bending radius: up to 50 mm² : 3xoverall diameter,
70mm² and above: 4xoverall diameter
Operating temperature: 0º C to +90º C
Insulation resistance: 10 MΩxkm
Flame retardant: IEC 60332.1, BS4066 Part 1

Cable Parameter

AWG (No of Strands/ Strand Diameter)	No. of Cores  x Nominal Cross Sectional Area #xmm²	Nominal Thickness of Insulation mm	Nominal Thickness of Sheath mm	Nominal Overall Diameter mm	Nominal Weight kg/km
16(30/30)	1x1.5	0.9	0.8	5.2	42
14(50/30)	1x2.5	0.9	0.8	5.7	54
12(56/28)	1x4	1	0.9	6.6	77
10(84/28)	1x6	1.1	0.9	7.3	102
8(80/26)	1x10	1.2	1	8.6	160
6(128/26)	1x16	1.2	1	9.6	210
4(200/26)	1x25	1.4	1.1	11.5	320
2(280/26)	1x35	1.4	1.1	12.8	420
1(400/26)	1x50	1.4	1.4	14.9	590
2/0(356/24)	1x70	1.4	1.4	17.2	810
3/0(485/24)	1x95	1.6	1.5	18.6	1020
4/0(614/24)	1x120	1.6	1.8	20.8	1285
300MCM (765/24)	1x150	1.8	1.8	23.1	1610
350MCM (944/24)	1x185	2	1.8	25.3	1940
500MCM(1225/24)	1x240	2.2	1.8	27.8	2480
(1525/24)	1x300	2.4	2	31.2	3050
(2013/24)	1x400	2.6	2.1	35.3	4035
(1769/23)	1x500	2.8	2.2	38.8	4970
(2257/23)	1x630	2.8	2.4	43.8	6510
