Industrial Cables Single Core Fixed Wiring Cable
H01N2-D/E to BS 638
Application and Description
H01N2-D/E to BS 638 cables are used as a connection between the welding generator, the hand-electrode and the
work piece, they are suitable for use in the automobile industry, ship building, transport and conveyor
systems, tool making machinery, welding robots etc. H01N2-D/E to BS 638 cables retain their high flexibility even under
influence of ozone, light, oxygen, protective gases, oil and petrol. Robust design of these cables makes
them resistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrols. These
cables are also ideal for outside installation in dry, moist and wet areas.

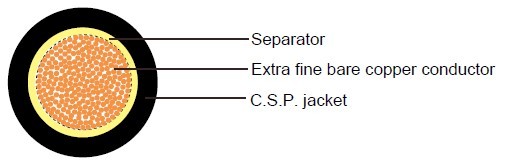

Cable Construction
Extra fine bare copper strands
Stranding to BS 6360 Class 5/6, IEC 60228 Class 5/6
Synthetic or paper separator over core
Chlorosulphonated Polyethylene (C.S.P.), HOFR (Heat and Oil Resistant and Flame Retardant) to
BS7655 , black/ orange
Technical Characteristics
Working voltage: 100/100 volts
Test voltage: 1000 volts
Minimum bending radius: 12.0xOverall diameter (H01N2-D)
10xOverall diameter (H01N2-E)
Flexing Temperature: -25º C to +80º C
Fixed Temperature: -40º C to +80º C
Flame retardant: IEC 60332.1CS
Cable Parameter
H01N2-D (standard flexibility)
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm | Nominal Copper Weight kg/km | Nominal Weight kg/km |
| 8(320/32) | 1x10 | 2.0 | 7.7-9.7 | 96 | 135 |
| 6(512/32) | 1x16 | 2.0 | 8.8-11.0 | 154 | 205 |
| 4(800/32) | 1x25 | 2.0 | 10.1-12.7 | 240 | 302 |
| 2(1120/32) | 1x35 | 2.0 | 11.4-14.2 | 336 | 420 |
| 1(1600/32) | 1x50 | 2.2 | 13.2-16.5 | 480 | 586 |
| 2/0(2240/32) | 1x70 | 2.4 | 15.3-19.2 | 672 | 798 |
| 3/0(3024/32) | 1x95 | 2.6 | 17.1-21.4 | 912 | 1015 |
| 4/0(614/24) | 1x120 | 2.8 | 19.2-24 | 1152 | 1310 |
| 300MCM(765/24) | 1x150 | 3.0 | 21.2-26.4 | 1440 | 1620 |
| 350MCM(944/24) | 1x185 | 3.2 | 23.1-28.9 | 1776 | 1916 |
| 500MCM(1225/24) | 1x240 | 3.4 | 25-29.5 | 2304 | 2540 |
H01N2-E(high flexibility)
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm | Nominal Copper Weight kg/km | Nominal Weight kg/km |
| 8(566/35) | 1x10 | 1.2 | 6.2-7.8 | 96 | 119 |
| 6(903/35) | 1x16 | 1.2 | 7.3-9.1 | 154 | 181 |
| 4(1407/35) | 1x25 | 1.2 | 8.6-10.8 | 240 | 270 |
| 2(1974/35) | 1x35 | 1.2 | 9.8-12.3 | 336 | 363 |
| 1(2830/35) | 1x50 | 1.5 | 11.9-14.8 | 480 | 528 |
| 2/0(3952/35) | 1x70 | 1.8 | 13.6-17.0 | 672 | 716 |
| 3/0(5370/35) | 1x95 | 1.8 | 15.6-19.5 | 912 | 1012 |
| 4/0(3819/32) | 1x120 | 1.8 | 17.2-21.6 | 1152 | 1190 |
| 300MCM(4788/32) | 1x150 | 1.8 | 18.8-23.5 | 1440 | 1305 |
| 500MCM(5852/32) | 1x185 | 1.8 | 20.4-25.5 | 1776 | 1511 |
