Industrial Cables
H01N2-D/E(NSKFFÖU)
Application and Description
H01N2-D/E(NSKFFÖU) cables are used as a connection between the welding generator, the hand-electrode and the work
piece. For use in the automobile industry, ship building, transport and conveyor systems, tool making
machinery, welding robots etc. H01N2-D/E(NSKFFÖU) cables retain their high flexibility even under influence of ozone, light,
oxygen, protective gases, oil and petrol. Robust cable structure of these cables makes them resistant to low
and high temperature, fire, ozone and radiation, oils, acids, fats and petrols. These cables are also ideal for
outside installation in dry, moist and wet areas.
Standard and Approval
<HAR> HD22.6 S2, VDE-0282 Part-6, IEC 60332.3, IEC 60754.1, UNEL 35368, CEI 20-22 II, CEI 20-38, CE
low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant

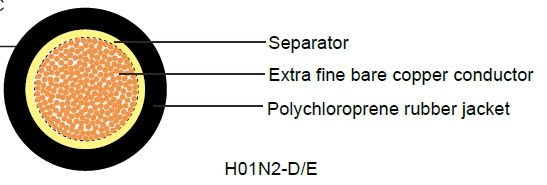

Cable Construction
Extra fine bare copper strands
Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383
Strands to VDE-0295 as listed below
Synthetic or paper separator over core
Polychloroprene rubber (neoprene) jacket EM5
Technical Characteristics
Working voltage: 100/100 volts
Test voltage: 1000 volts
Flexing bending radius: 12.0 x Ø
Fixed bending radius: 7.5 x Ø
Flexing Temperature: -25º C to +80º C
Fixed Temperature: -40º C to +80º C
Flame retardant: IEC 60332.1
Cable Parameter
Cables with Standard and Approval flexibilityNo. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
|
1 x 10 |
2.0 |
7.7-9.7 |
96 |
135 |
|
6(512/32) |
1 x 16 |
2.0 |
8.8-11.0 |
154 |
205 |
4(800/32) |
1 x 25 |
2.0 |
10.1-12.7 |
240 |
302 |
2(1120/32) |
1 x 35 |
2.0 |
11.4-14.2 |
336 |
420 |
1(1600/32) |
1 x 50 |
2.2 |
13.2-16.5 |
480 |
586 |
2/0(2240/32) |
1 x 70 |
2.4 |
15.3-19.2 |
672 |
798 |
3/0(3024/32) |
1 x 95 |
2.6 |
17.1-21.4 |
912 |
1015 |
4/0(614/24) |
1 x 120 |
2.8 |
19.2-24.0 |
1152 |
1310 |
300MCM(765/24) |
1 x 150 |
3.0 |
21.2-26.4 |
1440 |
1620 |
350MCM(944/24) |
1 x 185 |
3.2 |
23.1-28.9 |
1776 |
1916 |
500MCM(1225/24) |
1 x 240 |
3.4 |
25.0-29.5 |
2304 |
2540 |
Cables with extreme high flexibility
No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
|
8(566/35) |
1 x 10 |
1.2 |
6.2-7.8 |
96 |
119 |
6(903/35) |
1 x 16 |
1.2 |
7.3-9.1 |
154 |
181 |
4(1407/35) |
1 x 25 |
1.2 |
8.6-10.8 |
240 |
270 |
2(1974/35) |
1 x 35 |
1.2 |
9.8-12.3 |
336 |
363 |
1(2830/35) |
1 x 50 |
1.5 |
11.9-14.8 |
480 |
528 |
2/0(3952/35) |
1 x 70 |
1.8 |
13.6-17.0 |
672 |
716 |
3/0(5370/35) |
1 x 95 |
1.8 |
15.6-19.5 |
912 |
1012 |
4/0(3819/32) |
1 x 120 |
1.8 |
17.2-21.6 |
1152 |
1190 |
300MCM(4788/32) |
1 x 150 |
1.8 |
18.8-23.5 |
1440 |
1305 |
500MCM(5852/32) |
1 x 185 |
1.8 |
20.4-25.5 |
1776 |
1511 |
