6192Y/ 6193Y to BS 6004

Application and Description

6192Y/ 6193Y to BS 6004 cables are suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. They should be laid in conduit in conduit or trunking where mechanical protection is required.

Cable Construction

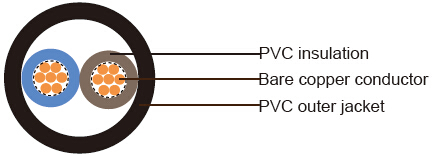

6192Y/ 6193Y to BS 60046192Y/ 6193Y to BS 6004

Core Identification

Technical Characteristics

Cable Parameter

AWG
(No of
Strands/
Strand
Diameter)
No. of Cores x Nominal Cross Sectional Area
#xmm²
Nominal thickness  of insulation
mm
Nominal thickness of sheath
mm
Nominal overall dimensions Nominal Weight kg/km
lower limit
mm
upper limit
mm
6192Y
17 2 × 1.0 0.6 0.9 3.9x6.1 4.8x7.4 53
16 2 × 1.5 0.7 0.9 4.4x7.0 5.4x8.5 70
14 2 × 2.5 0.8 1 5.1x8.4 6.2x10.1 105
12(7/20) 2 × 4 0.8 1 5.7x9.5 6.9x11.5 150
10(7/18) 2 × 6 0.8 1.1 6.4x10.8 7.8x13.0 205
8(7/16) 2 × 10 1 1.2 7.9x13.4 9.5x16.2 325
6(7/14) 2 × 16 1 1.3 8.9x15.4 10.8x18.6 465
6193Y
17 3 × 1.0 0.6 0.9 3.9x8.4 4.8x10.1 77
16 3 × 1.5 0.7 0.9 4.4x9.6 5.3x11.7 100
14 3 × 2.5 0.8 1 5.1x11.6 6.2x14.0 150
12(7/20) 3 × 4 0.8 1.1 5.9x13.5 7.1x16.3 230
10(7/18) 3 × 6 0.8 1.1 6.4x15.1 7.8x18.2 300
8(7/16) 3 × 10 1 1.2 7.9x19.0 9.5x23.0 485
6(7/14) 3 × 16 1 1.3 8.9x21.8 10.8x26.3 700
