XZ1

APPLICATIONS:

XZ1 cables with zero halogen are high security cables. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.

STANDARD:

IEC 60502-1

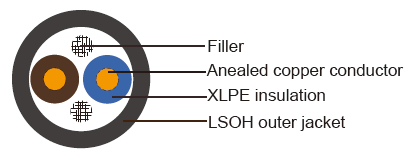

CONSTRUCTION:



Conductor: Plain copper conductor, class 1(<6mmsq)/class2(>6mmsq) to IEC 60228
Insulation: XLPE insulation
Colour Code : HD 308 S2
Filler: Not fibrous and not hygroscopic fill
Over Sheath: Flexible black LSOH outer jacket

PHYSICAL PROPERTIES:

Minimum bending radius: 12 x O
Operation temperature range: -15 °C to 90 °C
Short-circuit temperature: 250 °C

ELECTRICAL PROPERTIES:

Working Voltage: 600/1000 volts
Test voltage: 3500 volts
Halogen free: IEC 60754-1, EN 50267-2-1
No corrosive gases: IEC 60754-2, EN 50267-2-2
No toxic gases: NES 02-713, NF X 70-100 Low smoke density: IEC 61034, EN 50268-2
Flame retardant: IEC 60332-1, EN 50265-2-1
Non-flame propagating IEC 60332-3, EN 502

Nominal Cross Section	Overall Diameter (Approx.)	Cable Weight (Approx.)	Nominal Cross Section	Overall Diameter (Approx.)	Cable Weight (Approx.)
mm^2	mm	Kg/Km	mm^2	mm	Kg/Km
1 x 10	85	135	4 x 6	140	355
1 x 16	95	195	4 x 10	165	550
1 x 25	110	295	3 x 16 + 1 x 10	185	745
1 x 35	120	385	3 x 25 + 1 x 16	220	1140
1 x 50	135	510	3 x 35 + 1 x 16	240	1330
1 x 70	155	715	3 x 50 + 1 x 25	265	1795
1 x 95	175	970	3 x 70 + 1 x 35	310	2535
1 x 120	195	1215	3 x 95 + 1 x 50	350	3460
1 x 150	210	1480	3 x 120 + 1 x 70	385	4385
1 x 185	235	1840	3 x 150 + 1 x 70	425	5295
1 x 240	265	2375	3 x 185 + 1 x 95	450	6735
1 x 300	285	2980	3 x 240 + 1 x 120	525	8550
2 x 1,5	95	110	5 x 1,5	115	175
2 x 2,5	100	135	5 x 2,5	125	230
2 x 4	110	180	5 x 4	135	320
2 x 6	120	235	5 x 6	150	435
2 x 10	145	350	5 x 10	180	670
2 x 16	165	500	3 x 16 + 2G10	200	865
3 x 1,5	100	125	3 x 25 + 2G16	235	1315
3 x 2,5	105	160	3 x 35 + 2G16	260	1680
3 x 4	115	220	3 x 50 + 2G25	295	2250
3 x 6	125	290	3 x 70 + 2G35	340	3160
3 x 10	150	440	3 x 95 + 2G50	405	4485
3 x 16	175	635	3 x 120 + 2G70	465	5875
4 x 1,5	105	145	3 x 150 + 2G70	495	6835
4 x 2,5	115	195	3 x 185 + 2G95	510	7900
4 x 4	125	265	3 x 240 + 2G120	625	11115
