Mining Cable


Mining Cable

      Type 241 1.1 to 11KV

Applications

These cables are designed for various uses, including main feeder cable for continuous miners, pump cable, and power supply cable. Overall semiconductive screen provides protective earth contact for any object breaching the sheath prior to contact with power conductors.

Standards

Type 241 1.1 to 11KV

AS/NZS 1802:2003

AS/NZS 1125

AS/NZS 3808

AS/NZS 5000.1

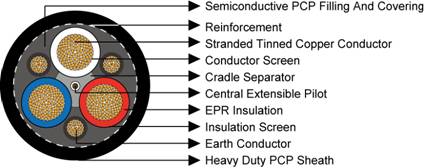

Construction

3×Conductors: Flexible stranded tinned annealed copper conductor.

Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.

Insulation: EPR.

Insulation Screen:Semiconductive tape.

Cradle Separator: Semiconductive PCP.

Overall Core Screen: Semiconductive PCP filling and covering.

3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor.

1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.

Textile Reinforcement: Open-weave braid reinforcement.

Sheath: Heavy duty PCP sheath.

Dimensions and Weight

Nominal Conductor Area Strand Size Insulation Thickness Earth Conductor Pilot Conductor Thickness of Sheath Including SC PCP Layer Nominal Overall Diameter Nominal Weight
Strand Size Thickness of Covering Strand Size Thickness of Covering
mm² No/mm mm No/mm mm No/mm mm mm mm kg/100m
Type 241.1
6 84/0.30 1.5 18/0.30 1.0 24/0.20 0.8 3.8 28.5 106
10 77/0.40 1.5 27/0.30 1.0 24/0.20 0.8 3.8 31.1 127
16 126/0.40 1.6 42/0.30 1.0 24/0.20 0.8 3.9 34.1 164
25 209/0.40 1.6 66/0.30 1.0 24/0.20 0.8 4.2 37.9 208
35 285/0.40 1.6 90/0.30 1.0 24/0.20 0.8 4.4 41.2 254
50 380/0.40 1.7 120/0.30 1.0 40/0.20 0.8 4.9 45.9 328
70 203/0.67 1.8 39/0.67 1.0 40/0.20 0.8 5.3 52.2 480
95 259/0.67 2.0 39/0.67 1.0 40/0.20 0.8 5.8 56.7 600
120 336/0.67 2.1 42/0.67 1.2 40/0.20 0.8 6.3 62.7 710
150 427/0.67 2.3 54/0.67 1.2 40/0.20 0.8 6.7 68.3 865
185 518/0.67 2.5 63/0.67 1.4 40/0.20 0.8 7.3 74.9 1030
240 672/0.67 2.8 77/0.67 1.4 40/0.20 0.8 8.0 83.3 1300
300 854/0.67 3.0 98/0.67 1.4 40/0.20 0.8 8.7 91.2 1600

Type 241.3

16

126/0.40

3.0

42/0.30

1.0

24/0.20

0.8

5.0

43.8

249

25

209/0.40

3.0

66/0.30

1.0

24/0.20

0.8

5.3

47.7

315

35

285/0.40

3.0

90/0.30

1.0

24/0.20

0.8

5.6

51.1

376

50

380/0.40

3.0

120/0.30

1.2

40/0.20

0.8

6.0

55.2

450

70

203/0.67

3.0

39/0.67

1.2

40/0.20

0.8

6.4

60.3

576

95

259/0.67

3.0

48/0.67

1.2

40/0.20

0.8

6.8

63.8

675

120

336/0.67

3.0

60/0.67

1.2

40/0.20

0.8

7.2

69.1

810

150

427/0.67

3.0

77/0.67

1.2

40/0.20

0.8

7.6

73.8

952

185

518/0.67

3.0

91/0.67

1.4

40/0.20

0.8

8.0

79.2

1130

240

672/0.67

3.0

112/0.67

1.4

40/0.20

0.8

8.6

86.0

1380

300

854/0.67

3.0

144/0.67

1.4

40/0.20

0.8

9.1

92.6

1660

Type 241.6

16

126/0.40

5.0

42/0.30

1.4

24/0.20

0.8

6.1

54.9

365

25

209/0.40

5.0

66/0.30

1.4

24/0.20

0.8

6.4

58.8

440

35

285/0.40

5.0

90/0.30

1.4

24/0.20

0.8

6.7

62.2

509

50

380/0.40

5.0

120/0.30

1.4

40/0.20

0.8

7.1

66.2

592

70

203/0.67

5.0

39/0.67

1.4

40/0.20

0.8

7.4

71.2

727

95

259/0.67

5.0

48/0.67

1.4

40/0.20

0.8

7.9

74.8

835

120

336/0.67

5.0

60/0.67

1.4

40/0.20

0.8

8.3

80.2

990

150

427/0.67

5.0

77/0.67

1.4

40/0.20

0.8

8.6

84.6

1140

185

518/0.67

5.0

91/0.67

1.4

40/0.20

0.8

9.0

90.0

1311

240

672/0.67

5.0

119/0.67

1.4

40/0.20

0.8

9.6

96.8

1576

300

854/0.67

5.0

156/0.67

1.4

40/0.20

0.8

10.2

103.6

1900

Type 241.11

25

209/0.40

7.6

66/0.30

1.8

24/0.20

0.8

7.8

73.2

645

35

285/0.40

7.6

90/0.30

1.8

24/0.20

0.8

8.1

76.6

724

50

380/0.40

7.6

120/0.30

1.8

40/0.20

0.8

8.5

80.6

825

70

203/0.67

7.6

39/0.67

1.8

40/0.20

0.8

8.9

85.7

975

95

259/0.67

7.6

48/0.67

1.8

40/0.20

0.8

9.3

89.1

1088

120

336/0.67

7.6

60/0.67

1.8

40/0.20

0.8

9.7

94.4

1258

150

427/0.67

7.6

77/0.67

1.8

40/0.20

0.8

10.0

98.9

1423

185

518/0.67

7.6

91/0.67

1.8

40/0.20

0.8

10.4

104.2

1610
