        Type SHD-CGC Three-Conductor Portable Power Cable 5kV

Applications

These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps, and other mobile equipment requiring grounding conductors, where a ground check conductor, and metallic shielding are required.

Standards

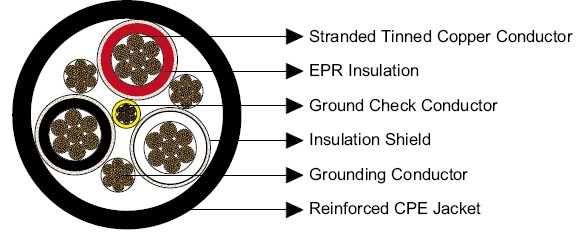

Construction

Type SHD-CGC Three-Conductor Portable Power Cable 5kV

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Dimensions and Weight:

Construction No. of Strands Grounding Conductor Size Ground Check Conductor Size Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight Ampacity
No. of cores×AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
3×2/0 323 5 16 0.11 2.8 0.220 5.6 2.20 55.9 3716 5529 243
3×3/0 418 4 16 0.11 2.8 0.235 6.0 2.36 59.9 4130 6145 279
3×4/0 532 3 16 0.11 2.8 0.235 6.0 2.50 63.5 5190 7722 321
3×350 888 1 16 0.12 3.0 0.265 6.7 2.95 74.9 7571 11264 435

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
