         Type SHD Three-Conductor Flat Portable Power Cable 2kV

Applications

These flat parallel cables are designed for use on continuous miners requiringgrounding conductors and metallic shieldingover each conductor.

Standards

Construction

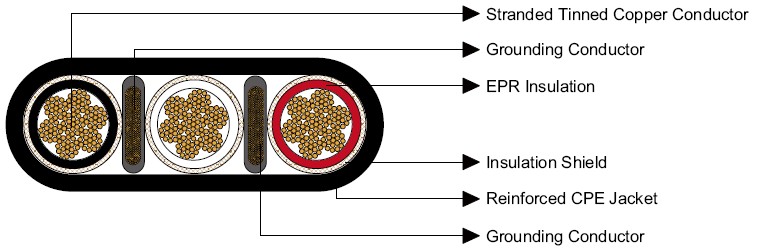

Type SHD Three-Conductor Flat Portable Power Cable 2kV

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Dimensions and Weight:

Construction No. of Strands Grounding Conductor Size Nominal Insulation Thickness Nominal Overall Diameter Height×Width Nominal Weight Ampacity
No. of cores×AWG/kcmil - AWG/kcmil inch mm inch mm lbs/kft kg/km A
3×2 259 6 0.07 1.8 0.94×2.45 23.9×62.2 2243 3338 159
3×1 259 5 0.08 2.0 1.04×2.64 26.4×67.1 2540 3780 184
3×1/0 259 4 0.08 2.0 1.08×2.82 27.4×71.6 2915 4338 211
3×2/0 329 3 0.08 2.0 1.18×2.99 30.0×76.0 3346 4980 243
3×3/0 413 2 0.08 2.0 1.25×3.29 31.8×83.6 3890 5789 279

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
