         Type W Four-Conductor Portable Power Cable 2kV

Applications

These flat parallel cables are designed for use on ACmining equipment, such as A.C. shuttle cars, drills, cutting and loading machines

Standards

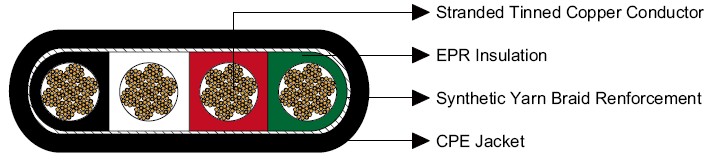

Construction

Type W Four-Conductor Portable Power Cable 2kV

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Dimensions and Weight:

Construction No. of Strands Nominal Insulation Thickness Nominal Overall Diameter Height×Width Nominal Weight Ampacity
No. of cores×AWG/kcmil - inch mm inch mm lbs/kft kg/km A
4×6 133 0.06 1.5 0.67×1.69 17.0×42.9 895 1332 72
4×4 259 0.06 1.5 0.75×1.89 19.0×48.0 1185 1764 93
4×2 259 0.06 1.5 0.84×2.23 20.6×56.6 1620 2411 122
4×1 259 0.08 2.0 0.97×2.60 24.6×66.0 2100 3125 143
4×1/0 259 0.08 2.0 1.01×2.73 25.7×69.3 2500 3721 165
4×2/0 329 0.08 2.0 1.10×2.96 27.9×75.2 2900 4316 192
4×3/0 413 0.08 2.0 1.18×3.25 30.0×82.6 3500 5209 221
4×4/0 532 0.08 2.0 1.29×3.46 32.8×87.9 4225 6288 255

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
