   (N)TSCGEWOEU Medium-Voltage Fixed Installation Cable Without Fibre Optics

Applications

These cables are used for laying alongside the conveyor belts (also for shiftable units)and on material handling equipment (even with continuous movementsuch as in cable booms or as connection between upperand lower car) and for connection of submersible pump units.

Standards

Based on VDE 0250 Part 813

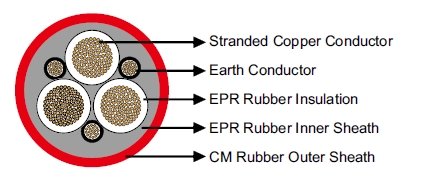

Construction

(N)TSCGEWOEU Medium-Voltage Fixed Installation Cable Without Fibre Optics

Conductors: Flexible strandedcopper conductor, class 5 according to DIN VDE 0295.

Inner Conductor Layer: Semiconductive layer.

Insulation: EPR.

Outer Conductor Layer:Semiconductive layer.

Earth Conductor: Split intothree in the outer interstices.

InnerSheath: EPR.

Dimensions and Weight

3.6/6 kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
3×25+3×25/3 36.7 39.7 2320
3×25+3×50/3 40.6 43.6 2860
3×35+3×25/3 40.5 43.5 2860
3×35+3×50/3 42.3 45.3 3220
3×50+3×25/3 43.8 46.8 3500
3×50+3×50/3 43.8 46.8 3650
3×70+3×35/3 47.0 50.0 4360
3×70+3×50/3 49.7 53.7 5010
3×95+3×50/3 52.2 56.2 5550
3×120+3×70/3 55.9 59.9 6690
3×150+3×70/3 61.0 65.0 8030
3×185+3×95/3 64.0 68.0 9320
3×240+3×120/3 72.1 76.1 11960
3×300+3×150/3 77.3 81.3 14260

6/10 kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
3×25+3×25/3 39.0 42.0 2520
3×25+3×50/3 41.4 44.4 2930
3×35+3×25/3 41.8 44.8 2980
3×35+3×50/3 43.6 46.6 3350
3×50+3×25/3 45.1 48.1 3640
3×50+3×50/3 45.1 48.1 3780
3×70+3×35/3 48.3 51.3 4500
3×70+3×50/3 48.3 51.3 4730
3×95+3×50/3 53.5 57.5 5710
3×120+3×70/3 57.2 61.2 6860
3×150+3×70/3 62.3 66.3 8210
3×185+3×95/3 65.3 69.3 9510
3×240+3×120/3 73.4 77.4 12170
3×300+3×150/3 78.6 82.6 14500

8.7/15 kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
3×25+3×25/3 42.5 45.5 2850
3×25+3×50/3 44.2 47.2 3210
3×35+3×25/3 45.3 48.3 3340
3×35+3×50/3 45.3 48.3 3480
3×50+3×25/3 49.4 53.4 4180
3×50+3×50/3 49.4 53.4 4320
3×70+3×35/3 52.7 56.7 5090
3×70+3×50/3 52.7 56.7 5310
3×95+3×50/3 57.0 61.0 6160
3×120+3×70/3 62.1 66.1 7550
3×150+3×70/3 65.7 69.7 8710
3×185+3×95/3 68.7 72.7 10020
3×240+3×120/3 76.8 80.8 12750
3×300+3×150/3 82.0 86.0 15110

12/20 kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
3×25+3×25/3 45.5 48.5 3150
3×25+3×50/3 45.5 48.5 3300
3×35+3×25/3 48.3 51.3 3660
3×35+3×50/3 48.3 51.3 3800
3×50+3×25/3 52.5 56.5 4540
3×50+3×50/3 52.5 56.5 4680
3×70+3×35/3 55.7 59.7 5460
3×70+3×50/3 55.7 59.7 5690
3×95+3×50/3 61.4 65.4 6770
3×120+3×70/3 65.1 69.1 7980
3×150+3×70/3 68.7 72.7 9170
3×185+3×95/3 73.2 77.2 10780
3×240+3×120/3 79.8 83.8 13280
3×300+3×150/3 86.3 91.3 16070

14/25 kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
3×25+3×25/3 50.3 54.3 3750
3×25+3×50/3 50.3 54.3 3900
3×35+3×25/3 53.1 57.1 4290
3×35+3×50/3 53.1 57.1 4430
3×50+3×25/3 56.3 60.3 5020
3×50+3×50/3 56.3 60.3 5160
3×70+3×35/3 61.0 65.0 6190
3×70+3×50/3 61.0 65.0 6410
3×95+3×50/3 65.3 69.3 7340
3×120+3×70/3 69.0 73.0 8580
3×150+3×70/3 74.0 78.0 10050
3×185+3×95/3 77.0 81.0 11430
3×240+3×120/3 85.0 90.0 14400
3×300+3×150/3 90.2 95.2 16860

18/30kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
3×25+3×25/3 53.7 57.7 4160
3×25+3×50/3 53.7 57.7 4300
3×35+3×25/3 56.6 60.6 4730
3×35+3×50/3 56.6 60.6 4870
3×50+3×25/3 61.2 65.2 5700
3×50+3×50/3 61.2 65.2 5840
3×70+3×35/3 64.4 68.4 6680
3×70+3×50/3 64.4 68.4 6900
3×95+3×50/3 68.7 72.7 7860
3×120+3×70/3 73.8 77.8 9390
3×150+3×70/3 77.5 81.5 10660
3×185+3×95/3 80.5 84.5 12060
3×240+3×120/3 88.5 93.5 15090
3×300+3×150/3 94.7 99.7 17820
