       H07RN-F/A07RN-F 450/750V Harmonized Rubber Cables

Applications

These cables are designed for the connection of heating units,industrial tools, mobile equipmentand machines, e.g. vulcanisation plates,hand-operated equipment,transportable motors etc., undernormal mechanical loads in dry anddamp areas, outdoors and in explosionhazard areas, as well as in industrialand agricultural applications and onbuilding sites.

Standards

DIN VDE 0282 Part1 and Part 4
HD 22.1
HD 22.4

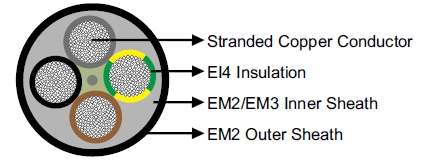

Construction

H07RN-F/A07RN-F 450/750V Harmonized Rubber Cables

Conductors: Strandedcopper conductor, class 5 according to DIN VDE 0295/HD 383 S2.
Insulation:
Rubbertype EI4 according to DIN VDE 0282 Part 1/HD 22.1.
Inner Sheath(for ≥ 10 mm² ormore than 5 cores): NR/SBR rubbertype EM1.
Outer Sheath: CR/PCP rubber type EM2.

Dimensions and Weight:

Number of Cores×Nominal Cross Section Insulation Thickness Thickness of Inner Sheath Thickness of Outer Sheath Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm mm mm mm kg/km
1×1.5 0.8 - 1.4 5.7 6.7 60
2×1.5 0.8 - 1.5 8.5 10.5 120
3G1.5 0.8 - 1.6 9.2 11.2 170
4G1.5 0.8 - 1.7 10.2 12.5 210
5G1.5 0.8 - 1.8 11.2 13.5 260
7G1.5 0.8 1.0 1.6 14.0 17.0 360
12G1.5 0.8 1.2 1.7 17.6 20.5 515
19G1.5 0.8 1.4 2.1 20.7 26.3 795
24G1.5 0.8 1.4 2.1 24.3 28.5 920
1×2.5 0.9 - 1.4 6.3 7.5 75
2×2.5 0.9 - 1.7 10.2 12.5 170
3G2.5 0.9 - 1.8 10.9 13.0 230
4G2.5 0.9 - 1.9 12.1 14.5 290
5G2.5 0.9 - 2.0 13.3 16.0 360
7G2.5 0.9 1.1 1.7 17.0 20.0 510
12G2.5 0.9 1.2 1.9 20.6 23.5 740
19G2.5 0.9 1.5 2.2 24.4 30.9 1190
24G2.5 0.9 1.6 2.3 28.8 33.0 1525
1×4 1.0 - 1.5 7.2 8.5 100
2×4 1.0 - 1.8 11.8 14.5 195
3G4 1.0 - 1.9 12.7 15.0 305
4G4 1.0 - 2.0 14.0 17.0 400
5G4 1.0 - 2.2 15.6 19.0 505
1×6 1.0 - 1.6 7.9 9.5 130
2×6 1.0 - 2.0 13.1 16.0 285
3G6 1.0 - 2.1 14.1 17.0 380
4G6 1.0 - 2.3 15.7 19.0 550
5G6 1.0 - 2.5 17.5 21.0 660
1×10 1.2 - 1.8 9.5 11.5 195
2×10 1.2 1.2 1.9 17.7 21.5 565
3G10 1.2 1.3 2.0 19.1 22.5 715
4G10 1.2 1.4 2.0 20.9 24.5 875
5G10 1.2 1.4 2.2 22.9 27.0 1095
1×16 1.2 - 1.9 10.8 13.0 280
2×16 1.2 1.3 2.0 20.2 23.5 795
3G16 1.2 1.4 2.1 21.8 25.5 1040
4G16 1.2 1.4 2.2 23.8 28.0 1280
5G16 1.2 1.5 2.4 26.4 31.0 1610
1×25 1.4 - 2.0 12.7 15.0 405
4G25 1.4 1.6 2.2 28.9 33.0 1890
5G25 1.4 1.7 2.7 32.0 36.0 2335
1×35 1.4 - 2.2 14.3 17.0 545
4G35 1.4 1.7 2.7 32.5 36.5 2505
5G35 1.4 1.8 2.8 35.0 39.5 2718
1×50 1.6 - 2.4 16.5 19.5 730
4G50 1.6 1.9 2.9 37.7 42.0 3350
5G50 1.6 2.1 3.1 41.0 46.0 3804
1×70 1.6 - 2.6 18.6 22.0 955
4G70 1.6 2.0 3.2 42.7 47.0 4785
1×95 1.8 - 2.8 20.8 24.0 1135
4G95 1.8 2.3 3.6 48.4 54.0 6090
1×120 1.8 - 3.0 22.8 26.5 1560
4G120 1.8 2.4 3.6 53.0 59.0 7550
5G120 1.8 2.8 4.0 59.0 65.0 8290
1×150 2.0 - 3.2 25.2 29.0 1925
4G150 2.0 2.6 3.9 58.0 64.0 8495
1×185 2.2 - 3.4 27.6 31.5 2230
4G185 2.2 2.8 4.2 64.0 71.0 9850
1×240 2.4 - 3.5 30.6 35.0 2945
1×300 2.6 - 3.6 33.5 38.0 3495
1×630 3.0 - 4.1 45.5 51.0 7020
