     N3GHSSYCY Medium-Voltage Cable


Applications

These cables are used for the connection of mobile operatingequipment, in mines and undergroundexcavations with hazardous environments,in stationary operation, e.g.high-voltage transformers in mining andtunnelling.

Standards


VDE 0250 Part 605

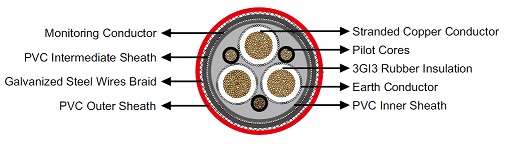

Construction

N3GHSSYCY Medium-Voltage Cable

Conductors: Flexible strandedcopper conductor, class 5 according to DIN VDE 0295.

Insulation: EPR compound type 3GI3.

Electrical Field Control:Inner and outer semiconductive layer ofsemiconductive rubber, for 6 kV outersemiconductive layer only.

Pilot Cores:Stranded copper conductor with EPR insulation.

Earth Conductor: Spiral ofcopper wiresover the outer semi-conductivelayer of the cores.

InnerSheath: PVC compound type YM5.

Monitoring Conductor: Conductive tape serving and overallconcentric Cu wire spinning.

Intermediate Sheath: PVCcompound type YM5.

Armour:Braid of galvanized steel wires.
Outer Sheath: PVC compound
type YM5.

Dimensions and Weight

3.6/6kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
3×25+3×16/3E+3×2.5ST+UEL 49.0 53.0 4190
3×35+3×16/3E+3×2.5ST+UEL 52.0 56.0 4800
3×50+3×25/3E+3×2.5ST+UEL 55.0 59.0 5600
3×70+3×35/3E+3×2.5ST+UEL 59.0 63.0 6650
3×95+3×50/3E+3×2.5ST+UEL 63.0 67.0 7940

6/10kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
3×25+3×16/3E+3×2.5ST+UEL 55.0. 58.0 5300
3×35+3×16/3E+3×2.5ST+UEL 58.0 61.0 5910
3×50+3×25/3E+3×2.5ST+UEL 61.0 65.0 6790
3×70+3×35/3E+3×2.5ST+UEL 65.0 69.0 7860
3×95+3×50/3E+3×2.5ST+UEL 68.0 73.0 9180

8.7/15kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
3×25+3×16/3E+3×2.5ST+UEL 58.0 62.0 6810
3×35+3×16/3E+3×2.5ST+UEL 61.0 65.0 7850
3×50+3×25/3E+3×2.5ST+UEL 64.7 68.7 9130
3×70+3×35/3E+3×2.5ST+UEL 67.9 71.9 10750
3×95+3×50/3E+3×2.5ST+UEL 72.4 76.4 12290

12/20kV

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
3×25+3×16/3E+3×2.5ST+UEL 62.3 66.3 8790
3×35+3×16/3E+3×2.5ST+UEL 65.3 69.3 9930
3×50+3×25/3E+3×2.5ST+UEL 69.0 73.0 11360
3×70+3×35/3E+3×2.5ST+UEL 72.2 76.2 13100
3×95+3×50/3E+3×2.5ST+UEL 76.8 80.8 14750
