       NSHTOEU 0.6/1kV LHD Cables

Applications

These cables are used for frequently changing dynamic loads, such as reeling cables for scoops (LHDs) in underground mines, suitable for mono-spiral reels and cylindrical reels.

Standards

VDE 0250 Part 814

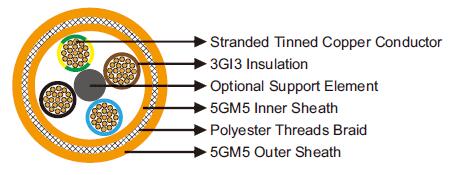

Construction

NSHTOEU 0.6/1kV LHD Cables

Conductors: Flexible stranded tinned copper conductor.
Insulation:
EPR type 3GI3.
Optional Support Element: Central support element.
Inner Sheath: PCP type 5GM5.
Anti-torsion Braid:Reinforced braid of polyester threads in a vulcanized bond between inner and outer sheath.
Outer Sheath: PCP type 5GM5.

Dimensions and Weight

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm kg/km
4x16(6 kN) 27.5 31.5 1500
4x35(12 kN) 37.5 42.0 2920
4x50(12 kN) 43.0 48.0 3970
4x50(30 kN) 42.0 44.0 3660
4x70 (20kN) 47.0 52.0 5530
4x95 (50kN) 53.0 58.0 6500
