      NSSHOEU .../3E + ST 0.6/1kV Heavy Duty Flexible Cable

Applications

These cables are designed for the connection of mobile equipment and machines under very high mechanical loads in dry and damp areas, outdoors and in explosion hazard areas, particularly in mining and industry, quarries and building sites.

Standards

VDE 0250 Part 812

Construction

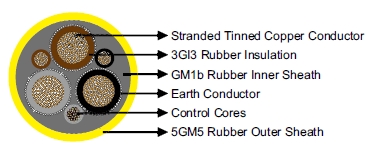

NSSHOEU .../3E + ST 0.6/1kV Heavy Duty Flexible Cable

Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation:
Heat resistant EPR type 3GI3.
Earth Conductor: Distributed as spiral of tinned copper wires over core insulating coverings (coding .../3E) or located concentrically between the inner and outer sheaths (coding ...kon).
Control Cores:Laid in the interstices, film wrap.
InnerSheath: Rubbertype GM1b.
Outer Sheath: Chlorinated rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.

Dimensions and Weight

Number of Cores×Nominal Cross Section Minimium Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
3×2.5+3×2.5/3E 15.0 18.0 410
3×4+3×4/3E 19.0 22.0 500
3×6+3×6/3E 18.0 21.0 660
3×10+3×10/3E 22.0 26.0 950
3×16+3×16/3E 28.0 32.0 1350
3×25+3×16/3E 29.0 33.0 1800
3×50+3×25/3E 40.0 44.0 3300
3×70+3×35/3E 44.0 49.0 4360
3×95+3×50/3E 52.0 57.0 5740
3×120+3×70/3E 56.0 61.0 6870
3×150+3×70/3E 62.0 68.0 8140
3×2.5+3×2.5/3E+3×1.5ST 18.0 20.0 500
3×4+3×4/3E+3×1.5ST 19.0 22.0 550
3×6+3×6/3E+3×1.5ST 20.0 24.0 810
3×10+3×10/3E+3×2.5ST 24.0 28.0 1150
3×16+3×16/3E+3×2.5ST 28.0 32.0 1470
3×25+3×16/3E+3×2.5ST 30.0 34.0 1960
3×35+3×16/3E+3×2.5ST 34.0 38.0 2590
3×50+3×25/3E+3×2.5ST 41.0 46.0 3560
3×70+3×35/3E+3×2.5ST 44.0 49.0 4470
3×95+3×50/3E+3×2.5ST 52.0 57.0 5850
3×120+3×70/3E+3×2.5ST 51.0 56.0 6800
3×150+3×70/3E+3×2.5ST 59.0 64.0 8100
3×2.5/2.5KON 14.0 17.0 380
5×2.5/2.5KON 18.0 21.0 560
5×4/4KON 20.0 24.0 710
5×6/6KON 20.0 24.0 910
10×1.5/1.5KON 20.0 24.0 800
10×2.5/2.5KON 26.0 29.0 1100
